CONTACTOR

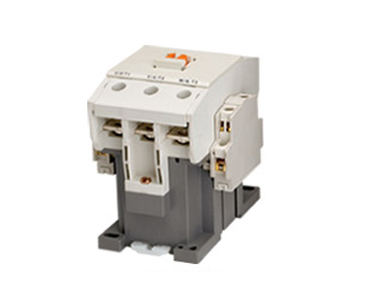

GMC AC Contactor
Print this page
Bookmark this page
PDF View
Tell a friend
Live Messenger
Skype Me
E-mail Us
Consulting Product Information
Share |

Type GMC-9 GMC-12 GMC-18 GMC-22 GMC-32 GMC-40
IEC-60947 AC1 duty 20A 20A 25A 32A 50A 60A
AC3 duty 200～240V 2.5KW 11A 3.5KW 13A 4.5KW 18A 5.5KW 22A 7.5KW 32A 11KW 40A
380～440V 4KW 9A 5.5KW 12A 7.5KW 18A 11KW 22A 15KW 32A 18.5KW40A
500～550V 4KW 7A 7.5KW 12A 7.5KW 13A 15KW 22A 18.5KW28A 22KW 32A
690V 4KW 5A 7.5KW 9A 7.5KW 9A 15KW 18A 18.5KW21A 22KW 25A
UL Continuous current(th) 20A 25A 30A 32A 45A 50A
AC Motor single
phase 		115V 0.5HP 0.5HP 1HP 2HP 2HP 3HP
230V 1HP 2HP 3HP 3HP 5HP 5HP
Three
phase		 200V 2HP 3HP 5HP 7HP 7.5HP 10HP
230V 2HP 3HP 5HP 7.5HP 10HP 10HP
460V 5HP 7.5HP 10HP 10HP 20HP 25HP
575V 7.5HP 10HP 15HP 15HP 20HP 25HP
Aux.contact
Side mounting
 AU-1 AU-1 AU-1 AU-1 AU-1 AU-1
Top mounting
 AU-2,AU-4 AU-2,AU-4 AU-2,AU-4 AU-2,AU-4 AU-2,AU-4 AU-2,AU-4
Panel installation
 Rail & Screw
External Dimension(mm)(W×H×D)
 44×80×86.8 68×82×94.6
Type GMC-50 GMC-65 GMC-75 GMC-85 GMC-100 GMC-125
IEC-60947 AC1 duty 80A 100A 110A 135A 150A 150A
AC3 duty 200～240V 15KW 55A 18.5KW65A 22KW 75A 25KW 85A 30KW105A 37KW125A
380～440V 22KW 50A 30KW 65A 37KW 75A 45KW 85A 55KW105A 60KW120A
500～550V 30KW 43A 37KW 60A 45KW 64A 45KW 75A 55KW 85A 60KW 90A
690V 30KW 33A 37KW 47A 45KW 64A 45KW 52A 55KW 65A 60KW 70A
UL Continuous current(th) 70A 80A 90A 100A 160A 160A
AC Motor single
phase 		115V 3HP 5HP 5HP 7.5HP 7.5HP 10HP
230V 7.5HP 10HP 15HP 15HP 15HP 20HP
Three
phase		 200V 10HP 15HP 20HP 25HP 30HP 40HP
230V 15HP 20HP 25HP 30HP 30HP 40HP
460V 30HP 40HP 50HP 50HP 60HP 75HP
575V 30HP 40HP 50HP 50HP 60HP 75HP
Aux.contact
Side mounting
 AU-1 AU-1 AU-1 AU-1 AU-100 AU-100
Top mounting
 AU-2,AU-4 AU-2,AU-4 AU-2,AU-4 AU-2,AU-4 AU-2,AU-4 AU-2,AU-4
Panel installation
 Rail & Screw Screw
External Dimension(mm)(W×H×D)
 94×123.5×117.4 100×157.4×146.5
