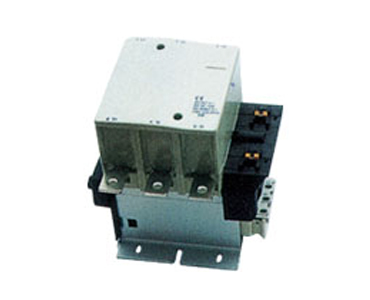

LC1-F series AC contactor is applicable in the circuits up to the rated voltage 1000V AC 50Hz or 60Hz, rated current 780A, for long distance breaking circuit and frequently starting or control the motor. It also can be used for the control of distribuition circuits of rated current from 200A to 1600A.

Model			CJX2-F115	CJX2-F150	CJX2-F185	CJX2-F265	CJX2-F400	CJX2-F500	CJX2-F630	CJX2-F780
Number of poles			3 or 4	3 or 4	3 or 4	3 or 4	2,3 or 4	2,3 or 4	2,3 or 4	3 or 4
Rated operational current	in AC-3(1) up to	A	115	150	185	265	400	500	630	780
Maximum operational current	in AC-3(2)	A	200	250	275	350	500	700	1000	1600
Rated operational voltage		V	1000	1000	1000	1000	1000	1000	1000	1000
