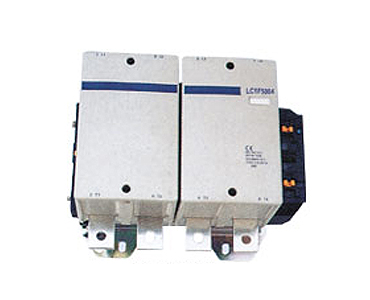

LC1-F Series A.C. contactors thereafter referred to contactors are applied for electric power circuits of 50 or 60Hz,voltage up to 1000V and current to 780A,They are used for remotely making and breaking circuits and frequently actuating and controlling A.C. motors.They can be assembled with blocks such as auxiliary contact block,air time delay head and Y-stars.Also they can be directly plugged in by thermal relays and constructed as magnetic starters.

AC1 200-1000A
AC3 115-630A
AC/DC circuit

Model	No.of Auxiliary contact	Rated work current	Appointed thermal current	Three phase motor rated power		Fuse (SCPD)		Weight
LC1	NO	380V AC3 le/A	AC1 lth/A	AC3 380V 50HZ		Model	Rated current In/A	Kg
				KW	Hp-ch
F1154	4	115	200	55	75	RT16-2	250	4.3
F1504	4	150	250	75	100	RT16-2	355	4.5
F1854	4	185	275	90	125	RT16-3	425	5.4
F2254	4	225	315	110	150	RT16-3	500	5.7
F2654	4	265	350	132	180	RT16-3	630	8.5
F3304	4	330	400	160	220	RT16-4	800	10
F4004	4	400	500	200	280	RT16-4	800	10
F5004	4	500	700	250	335	RT16-4	1000	12.9
F6304	4	630	1000	335	450	RT16	1250	20.5
