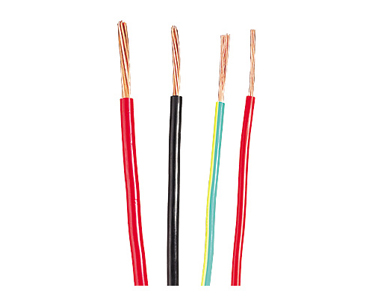

| BVR , BVR-105 Copper Core PVC Isolate Electric Wire |
|
|
|
|
|
The product is applied to wirings on electric apparatus, meters, teleconmmunication equipment, power and illumination etc, with a rated AC volatage no less than (≥) 450/750V and a DC voltage not more than (≤) 1000V. The wiring can be laid either ectermally or internally. |
|
|
|
|
The core of the wire is allowed to work under the temperature not more than +70℃ in long term. The installation temperature of the wire shall not be lower than -15℃.
1. Product standards: JB8734-98, Q/JBOR2-98, 227IEC
2. Specification |
|
|
|
|
| |
| BVR-105(enterprise standard Q/JBOR2-98)105℃ |
Rated voltage
Uo/U(V) |
Normal section
mm2 |
Conductor
construction |
Isolate Thickness
mm |
Wire max outside diameter
mm |
| 450/750 |
2.5 |
19/0.41 |
0.8 |
4.2 |
| 4 |
19/0.52 |
0.8 |
4.8 |
| 6 |
19/0.64 |
0.8 |
5.6 |
| 10 |
49/0.52 |
1.0 |
7.6 |
| 16 |
49/0.64 |
1.0 |
8.8 |
| 25 |
98/0.58 |
1.2 |
11.0 |
| 35 |
133/0.58 |
1.2 |
12.5 |
| 50 |
133/0.68 |
1.4 |
14.5 | |
|
| BVR 227IEC standard |
| Uo/U(V) |
mm2 |
Conductor
construction |
Isolate Thickness
mm |
Wire max outside diameter
mm |
| 450/750 |
2.5 |
19/0.41 |
0.8 |
4.2 |
| 4 |
19/0.52 |
0.8 |
4.8 |
| 6 |
19/0.64 |
0.8 |
5.6 |
| 10 |
49/0.52 |
1.0 |
7.6 |
| 16 |
49/0.64 |
1.0 |
8.8 |
| 25 |
98/0.58 |
1.2 |
11.0 |
| 35 |
133/0.58 |
1.2 |
12.5 |
| 50 |
133/0.68 |
1.4 |
14.5 |
| 70 |
189/0.68 |
1.4 |
16.5 |
| 95 |
259/0.68 |
1.6 |
19.0 | |
