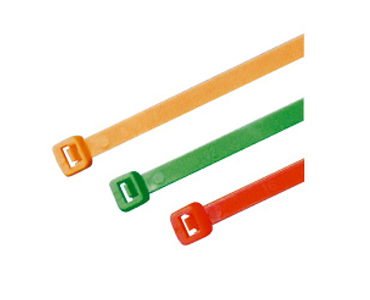

Self-locking Nylon Cable Ties
Print this page
Bookmark this page
PDF View
Tell a friend
Live Messenger
Skype Me
E-mail Us
Consulting Product Information
Share |

Material: Nylon 66,94V-2 certificated by UL. Heat-resisting,erosion control,insulate well and not apt to age.
Operating temperature:-40℃ to 85℃.

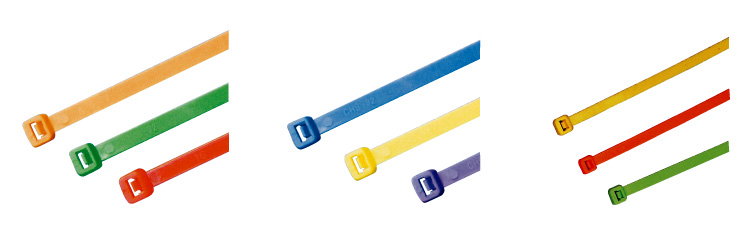

Color:Natural (or white,standard color),UV black and other colors are available as requested.

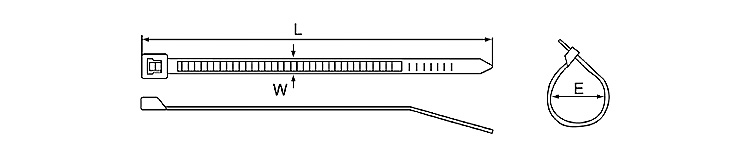

ITEM.NO L W
(mm)		 Bundle
Diameter
(mm)		 Min.loop
Tensile Strength		 Packing
INCH mm lbs KGS
3×60 2 3/8〃 60 2.5 2-11 18 8 100PCS
or
1000PCS / bolt
3×80 3 3/16〃 80 2.5 2-16 18 8
3×100 4〃 100 2.5 2-22 18 8
3×120 4 3/4〃 120 2.5 2-30 18 8
3×150 6〃 150 2.5 2-35 18 8
3×160 6 1/14〃 160 2.5 2-40 18 8
3×200 8〃 200 2.5 3-50 18 8
4×140 5 1/2〃 140 3.5 3-33 40 18 100PCS
or
500PCS / bolt
4×150 6〃 150 3.5 3-35 40 18
4×180 7〃 180 3.5 3-42 40 18
4×200 8〃 200 3.5 3-50 40 18 100PCS
or
250PCS / bolt
4×250 10〃 250 3.5 3-65 40 18
4×280 11〃 280 3.5 3-70 40 18
4×300 11 5/8〃 300 3.5 3-80 40 18
4×370 14 1/2〃 370 3.5 3-102 40 18
5×120 4 3/4〃 120 4.8 3-24 50 22 100PCS
or
500PCS / bolt
5×180 7〃 180 4.8 3-42 50 22
5×190 7 1/2〃 190 4.8 3-46 50 22
5×200 8〃 200 4.8 3-50 50 22 100PCS
or
200PCS / bolt
5×250 10〃 250 4.8 3-65 50 22
5×280 10〃 280 4.8 3-70 50 22
5×300 11 5/8〃 300 4.8 3-82 50 22
5×350 13 3/4〃 350 4.8 3-90 50 22 100PCS
5×380 15〃 380 4.8 3-102 50 22
5×400 15 3/4〃 400 4.8 3-105 50 22
5×430 17〃 430 4.8 3-110 50 22 100PCS
&
250PCS
5×450 17 3/4〃 450 4.8 3-130 50 22
8×150 6〃 150 7.0 3-33 120 55
8×180 7〃 180 7.0 3-42 120 55
8×200 8〃 200 7.0 3-50 120 55
8×250 10〃 250 7.0 4-63 120 55
8×300 11 5/8〃 300 7.0 4-82 120 55
8×350 13 3/4〃 350 7.9 4-90 120 55
8×400 15 3/4〃 400 7.9 4-105 120 55
8×450 17 3/4〃 450 7.9 4-118 120 55
8×500 19 11/16〃 500 7.9 4-150 120 55
9×550 21 11/16〃 550 9.0 8-160 175 80
9×650 25 9/16〃 650 9.0 8-190 175 80
9×760 30〃 760 9.0 10-225 175 80
9×920 36 1/4〃 920 9.0 10-265 175 80
9×1020 40 1/6〃 1020 9.0 10-295 175 80
10×450 17 3/4〃 450 10.0 10-125 200 91
10×500 19 11/16〃 500 10.0 10-150 200 91 100PCS
10×600 23 3/2〃 600 10.0 12-175 200 91
10×700 27 1/2〃 700 10.0 12-205 200 91
12×650 25 9/16〃 650 12.0 14-190 250 114
12×750 29 9/16〃 750 12.0 10-220 250 114
