CONTACTOR

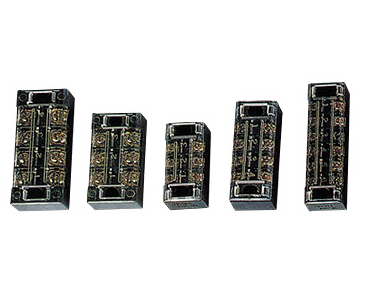

TB Series Connector
Print this page
Bookmark this page
PDF View
Tell a friend
Live Messenger
Skype Me
E-mail Us
Consulting Product Information
Share |


Specifications

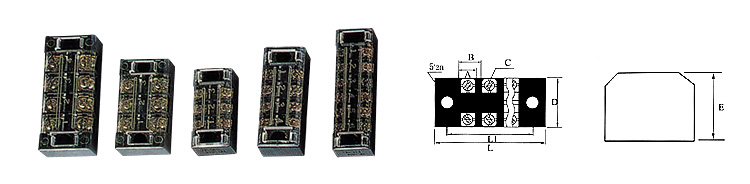

Type Rating Number Of Poles Plmentsions(mm)
L L1 A B X D E
TB-1503 600V
15A		 3 46 36.5 7.5 9 M3 22 17
TB-1504 4 55 45.5 7.5 9 M3 22 17
TB-1506 6 73 63.5 7.5 9 M3 22 17
TB-1512 12 127 118 7.5 9 M3 22 17
TB-2503 600V
25A		 3 50 40 10.5 12 M4 30 20
TB-2504 4 62.5 57 10.5 12 M4 30 20
TB-2506 6 91 81.5 10.5 12 M4 30 20
TB-2512 12 163 153 10.5 12 M4 30 20
TB-3503 600V
35A		 3 50 40 10.5 12 M4 22 20
TB-3504 4 62.5 57 10.5 12 M4 30 20
TB-3506 6 91 81.5 10.5 12 M4 30 20
TB-3512 12 163 153 10.5 12 M4 30 20
TB-4503 600V
45A		 3 70 60.5 15 17 M5 38 23.5
TB-4504 4 86 75.5 15 17 M5 38 23.5
TB-4506 6 120.5 110 15 17 M5 38 23.5
TB-6003 600V
60A		 3 70.5 65.5 15.5 18 M6 38 31
TB-6004 4 93.5 82.5 15.5 18 M6 38 31
TB-6006 6 129 118 15.5 18 M6 38 31
TB-1003 600V
100A		 3 86.5 75.5 22 20 M6 43.5 35
TB-1004 4 108 96 22 20 M6 43.5 35
TB-1006 6 153 140 22 20 M6 43.5 35

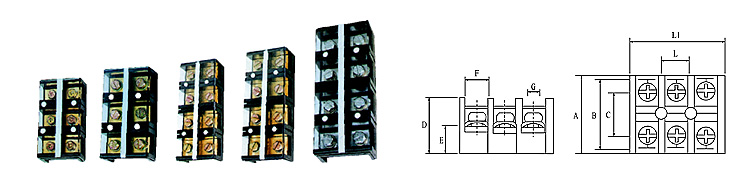

TC-603 60A 3 28.5 86.5 42.7 38 25.5 31 17 17 M6
TC-604 4 28.5 115 42.7 38 25.5 31 17 17 M6
TC-1003 100A 3 34.5 113.5 55.2 46.5 28 36.3 17.3 22.5 M6
TC-1004 4 34.5 137.5 55.2 46.5 28 36.3 17.3 22.5 M6
TC-1503 150A 3 38.5 115 67 57.2 30.5 40 19.8 25.3 M8
TC-1504 4 38.5 153 67 57.2 30.5 40 19.8 25.3 M8
TC-2003 200A 3 44.5 133 72.1 63 34 44.4 23 28.3 M8
TC-2004 4 44.5 177 72.1 63 34 44.4 23 28.3 M8
TC-3003 300A 3 55 164 89.4 78 47.5 50.6 27 30 M10
TC-3004 4 55 218 89.4 78 47.5 50.6 27 30 M10
TC-4003 400A 3 55 164 89.4 78 47.5 50.6 27 36 M10
TC-4004 4 55 218 89.4 78 47.5 50.6 27 36 M10
