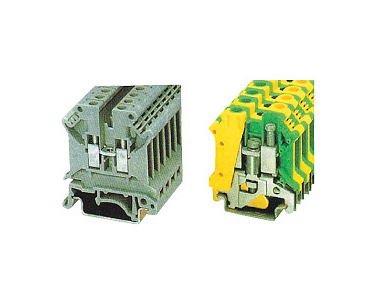

| UK Series General Model Terminal Block |
|
| Specification |
|
| Connector |
Hard wire(mm2) |
Soft wire(mm2) |
Rated Current |
Rated Voltage |
Dimensions(mm) |
| UK2.5B |
0.2-4 |
0.2-2.5 |
32A |
690VAC |
6.2x42.5x42 |

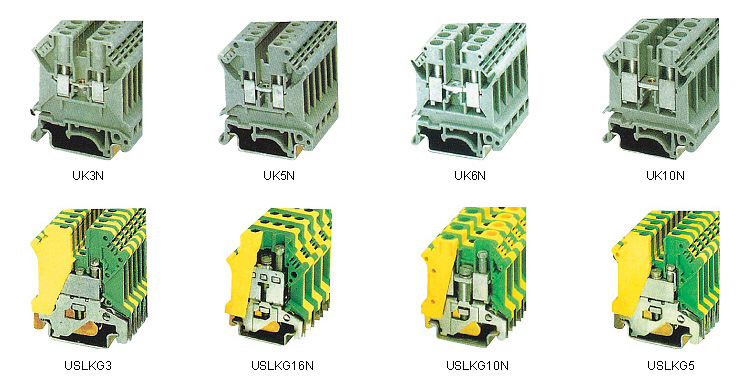

| UK3N |
0.2-4 |
0.2-2.5 |
32A |
800VAC |
6.2x42.5x42 |
| UK5N |
0.2-6 |
0.2-4 |
41A |
800VAC |
6.2x42.5x42 |
| UK6N |
0.2-10 |
0.2-2.5 |
57A |
800VAC |
6.2x42.5x47 |
| UK10N |
0.5-16 |
0.5-10 |
76A |
800VAC |
10.2x42.5x47 |
| UK16N |
2.5-25 |
4-16 |
101A |
800VAC |
12.2x42.5x54 |
| UK35N |
0.75-50 |
0.75-35 |
150A |
1000VAC |
15.2x50.0x62 |
| UKH50 |
16-50 |
25-50 |
150A |
1000VAC |
20x70.5x83.5 |
| UKH95 |
25-95 |
35-95 |
232A |
1000VAC |
25x83x97.5 |
| UKH150 |
35-150 |
50-150 |
309A |
1000VAC |
31x100x118.5 | |
|
| Connector |
Hard wire(mm2) |
Soft wire(mm2) |
Rated Current |
Dimensions(mm) |
| USLKG2.5 |
0.2-4 |
0.2-2.5 |
32 |
6.2×42.5×42 |
| USLKG3 |
0.2-4 |
0.2-2.5 |
32 |
5.2×42.5×47 |
| USLKG5 |
0.2-6 |
0.2-4 |
41 |
6.2×42.5×47 |
| USLKG6N |
0.2-10 |
0.2-6 |
57 |
8.2×42.5×47 |
| USLKG10N |
0.5-16 |
0.5-10 |
76 |
10.2×42.5×47 |
| USLKG16N |
2.5-25 |
4-16 |
101 |
12.2×42.5×54 |
| USLKG35N |
0.75-50 |
0.75-35 |
150 |
15.2×50.0×62 |
| USLKG50 |
16-50 |
25-50 |
150 |
20×70.5×81.5 | | |
|
