Application

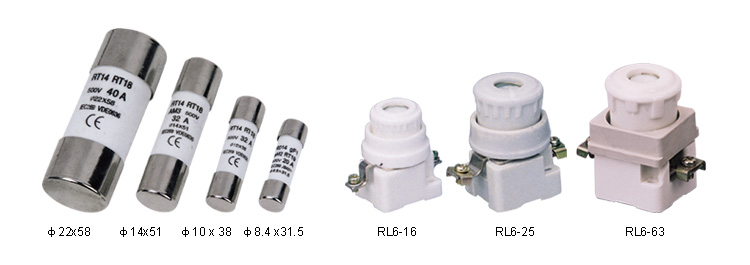

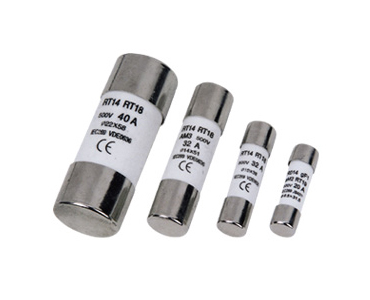

The fuses with fuse links having cylindrical contact caps are designed for protecting electrical distributing installations of rated voltage of 380V AC, wtih rated current up to 125A against damage due to overload and short circuit current.
Fuse links with the stricker are supplied for pupose of protecting motors against motor single phasing operation when fitted in fuse isolators.
Technical specifications
Dimension
(mm)
Rated current
(A)
L
Hamx
ΦC
mm
8.5×31.5
2, 4, 6, 10, 16
31.5±
8.2
8.5±0.1
10×38
2, 4, 6, 10, 16, 20, 25, 32
31.5±0.6
10.5
10.3±0.1
14×51
2, 4, 6, 10, 16, 20, 25,
32, 40, 50, 63
51±
13.8
14.3±0.1
22×58
10, 16, 20,25, 32, 40,
50, 63, 80, 100
58±
16.2
22.2±0.1
30×58
63, 80, 100, 125
58±
16.2
30±0.1
Technical specifications

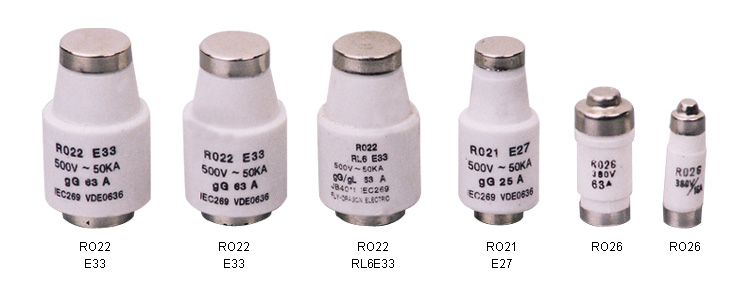

Model
RL-16ND
RL6-25
RL6-63
Rated voltage
500V
500V
500V
Rated current
of fuse
25A
25A
63A
Rated current
of fusant
1, 2, 4, 6, 10A
2, 4, 6, 10,
16, 20, 25A
35, 50, 63A
Rated breaking
current
50KA
cosΦ=0.1-0.2
50KA
cosΦ=0.1-0.2
50KA
cosΦ=0.1-0.2
Overall
dimensions (mm)
35×35×70
66×43×80
89×54×82
Weight
0.15kg
0.20kg
0.35kg
