| Application |
|
|

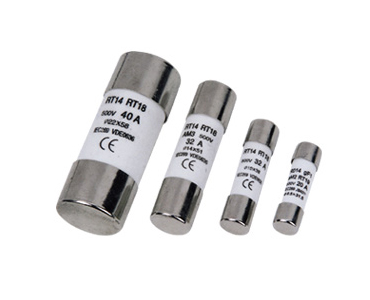

The fuses with fuse links having cylindrical contact caps are designed for protecting electrical distributing installations of rated voltage of 380V AC, wtih rated current up to 125A against damage due to overload and short circuit current.
Fuse links with the stricker are supplied for pupose of protecting motors against motor single phasing operation when fitted in fuse isolators. |
|
| Technical specifications |
|
|
Dimension
(mm) |
Rated current
(A) |
L |
Hamx |
ΦC |
|
mm |
|
8.5×31.5 |
2, 4, 6, 10, 16 |
31.5±  |
8.2 |
8.5±0.1 |
|
10×38 |
2, 4, 6, 10, 16, 20, 25, 32 |
31.5±0.6 |
10.5 |
10.3±0.1 |
|
14×51 |
2, 4, 6, 10, 16, 20, 25,
32, 40, 50, 63 |
51±  |
13.8 |
14.3±0.1 |
|
22×58 |
10, 16, 20,25, 32, 40,
50, 63, 80, 100 |
58±  |
16.2 |
22.2±0.1 |
|
30×58 |
63, 80, 100, 125 |
58±  |
16.2 |
30±0.1 | |
|

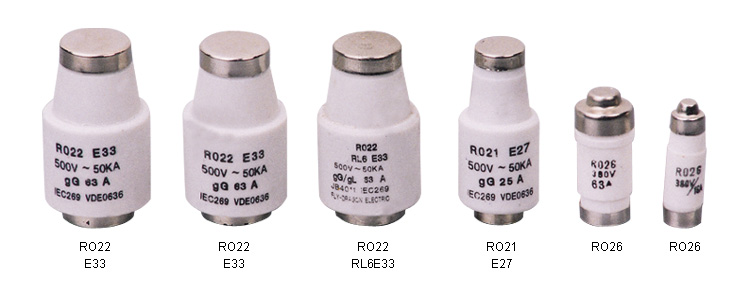

| Technical specifications |
|
|

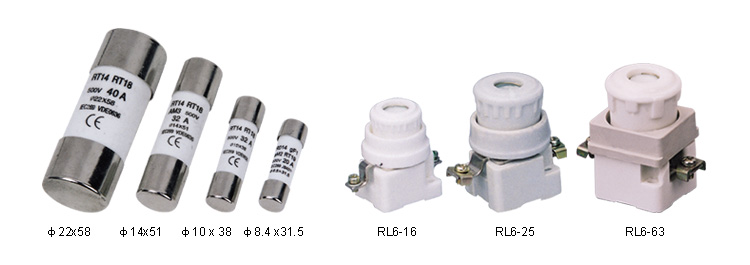

Model |
RL-16ND |
RL6-25 |
RL6-63 |
|
Rated voltage |
500V |
500V |
500V |
|
Rated current
of fuse |
25A |
25A |
63A |
|
Rated current
of fusant |
1, 2, 4, 6, 10A |
2, 4, 6, 10,
16, 20, 25A |
35, 50, 63A |
|
Rated breaking
current |
50KA
cosΦ=0.1-0.2 |
50KA
cosΦ=0.1-0.2 |
50KA
cosΦ=0.1-0.2 |
|
Overall
dimensions (mm) |
35×35×70 |
66×43×80 |
89×54×82 |
|
Weight |
0.15kg |
0.20kg |
0.35kg | | |
