CONTACTOR

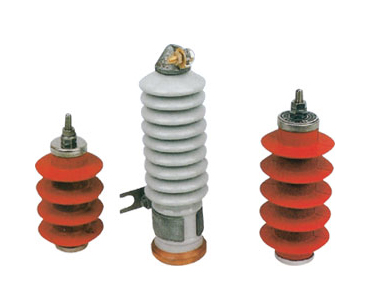

Lighting Arrester
Print this page
Bookmark this page
PDF View
Tell a friend
Live Messenger
Skype Me
E-mail Us
Consulting Product Information
Share |
Type System rated
voltage
(KV)		 Lightning arrester
rated voltage
(KV)		 Lightning arrester
continuous operating voltage (KV)		 DC 1mA
Voltage
(KV)		 Norminal
discharge
current wire (KV)		 Square wage
impulse current
endurance
(A)
YHWS-3.8/17 3 3.8 2.2 7.5 17 100
YHWS-7.6/30 6 7.6 4.0 15 30 100
YHWS-10/30 6 10 4.0 15 30 100
YHWS-12.7/50 10 12.7 6.6 25 50 100
YHWS-17/45 10 17 12.7 25 50 100
Type Rated
voltage
KV		 Power frequency
discharge
current
≤KV		 Impulse
discharge
voltage
≥KV		 8/20 u SResidual
voltage for
lightning impulse
≤KV		 Square wave
through
discharge
A		 4/10 u S Impulse
max current
20 times
KV		 Front-of-wave
Impulse max
sparkover voltage
KV
Y5C-15 15 26 47 57 100 40 47
Y10C-15 26 43 51 150 65 43
Y5C-18 18 33 48 57 100 40 66
Y10C-18 33 48 60 200 65 70
Y5C-24 24 40 66 80 100 40 88
Y10C-24 40 66 80 200 65 92
Y5C-33 33 56 100 123 100 40 100
Y10C-33 56 93 113 200 65 93
Y5C-36 36 61 106 133 100 40 106
Y10C-36 61 99 120 200 65 99
