■MG27+
■Pocket size and light weight
■Versatility of use with ACV & ACA measurement
■Overload protection
Accessories:
Test lead, battery [AA(1.5V)x1], instruction manual
carrying case
|
| Function |
Measuring Range |
Accuracy |
| ACV |
0-300-600V |
±5.0% |
| ACA |
0-5-10-25-100-250A |
±5.0% |
| OHM |
0-1K-10KΩ |
|
| Clamp size |
φ28mm(Max.) |
|
| Size/weight |
160x80x32mm / 250g |
| | |
|
 |

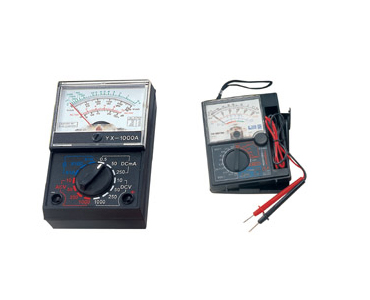

■YX1000A
■Pocket size and weight
■Easy to read 3 colour scale
■Recessed safety input terminals
Accessories:
Test lead, battery [6F22(9V)x1], instruction manual
|
| Function |
Measuring Range |
Accuracy |
| DCV |
0-10-50-250-1000V |
±3.0% |
| ACV |
0-10-50-250-1000V |
±5.0% |
| DCA |
0-0.5-50-500mA |
±3.0% |
| OHM |
Rx10,Rx100,Rx1K |
±3.0% |
| Size / weight |
100x64x32mm / 80g |
| | |
|
 |
■YX360TRD
■A large and bright meter with a scale lengthy of 80mm and its sensitivity of 44*A, at full scale
■Excellent DC resolution factor of 2mV and expanded resistance measurement from 0.2Ω~20mΩ
■Fuse and diode protection
Accessories:
Test lead,battery [6F22(9V)x1, AA(1.5V)x2],
instruction manual
|
| Function |
Measuring Range |
Accuracy |
| DCV |
0.1-0.25-2.5-10-50-250V |
±3.0% |
| ACV |
10-50-250V |
±4.0% |
| DCA |
50μ-2.5m-25m-0.25A |
±3.0% |
| OHM |
2K-20K-2MΩ |
±3.0% |
| L1 |
150μ-1.5m-15m-150mA |
|
| dB |
-10dB~+62dB |
|
| CAP |
10μF |
|
| hFE |
0~1000 |
|
| Size / weight |
160x128x41mm / 320g |
| | |
|
| Display: |
|
| suns30, suns31 |
Digital 2400 counts, updates 3/sec |
| suns32-suns37 |
Digital 1900 counts, updates 3/sec |
| Operating temp |
-50℃-1000℃ |
| Storage temp. |
-50℃-1000℃ |
| Battery type |
|
| suns30, suns31 |
1.5Vx2 AAA R03 SUM-4 |
| suns32-suns37 |
6F22 9V×1 |
| Continuity beeper |
2700Hz |
| Size (H×W×L) |
3.9cm×7.0cm×15.5cm |
| Weight |
about 230g |
| Safety |
600V CATⅡ | |
|
| Function |
Measuring Range |
Accuracy |
| DCV |
200mV-600V |
±0.8% |
| ACV |
10-50-250V |
±1.5% |
| DCA |
50μ-2.5m-25m-0.25A |
±1.2% |
| ACA |
240μA-10A |
±1.5% |
| OHM |
240Ω-24MΩ |
±1.0% |
| CAP |
250nF-25μF (only for suns31) |
±3.0% |
| Hz |
50Hz-50MHz |
±1.2% | | |
|
 |
| Function |
SUNS32H |
SUNS32L |
SUNS33H |
SUNS33L |
SUNS35 |
SUNS36 |
SUNS37L |
| DCV |
200mV-600V |
200mV-600V |
200mV-600V |
200mV-600V |
200mV-600V |
200mV-600V |
200mV-600V |
| ACV |
200V-600V |
200V-600V |
200V-600V |
200V-600V |
200V-600V |
200V-600V |
200V-600V |
| DCA |
2mA-10A |
2mA-10A |
200μA-10A |
200μA-10A |
20mA-10A |
2mA-10A |
200mA-20A |
| Ω |
200Ω-2MΩ |
200Ω-2MΩ |
200Ω-2MΩ |
200Ω-2MΩ |
200Ω-2MΩ |
200Ω-2MΩ |
200Ω-2MΩ |
| - |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
| - |
50Hz |
/ |
50Hz |
/ |
/ |
50Hz |
50Hz |
| hFE |
Yes |
Yes |
/ |
/ |
/ |
/ |
/ |
| BATT. Check |
/ |
/ |
/ |
/ |
1.5V-9V |
/ |
1.5V-9V |
| ℃ |
/ |
/ |
/ |
/ |
/ |
-40℃~1200℃ |
/ |
| Transistor |
1-1000β |
1-1000β |
1-1000β |
1-1000β |
1-1000β |
1-1000β |
1-1000β |
| Data hold |
Yes |
/ |
Yes |
/ |
Yes |
/ |
/ |
| Back light |
/ |
Yes |
/ |
Yes |
Yes |
Yes |
Yes |
| Auto power off |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes | | | |
|
