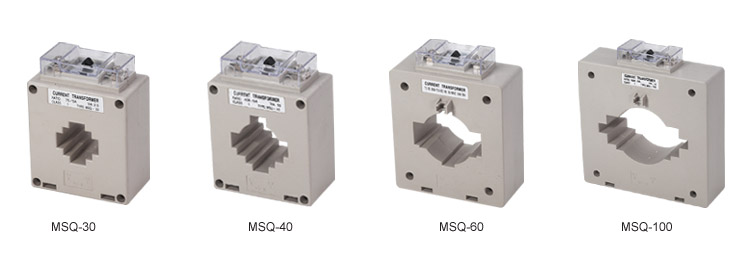

| Technical characteristics of current transformers: |
|
| WINDOWS TYPE |
Bar: 30×10mm.
conductor: φ20mm. |
|
Type |
Rated
current
(A) |
Rated power (VA) |
Weight
(kg) |
|
Class:0.5 |
Class:1 |
|
MSQ-30 |
30/5 |
- |
1 |
0.4 |
|
40/5 |
- |
1 |
0.4 |
|
50/5 |
- |
1 |
0.4 |
|
60/5 |
- |
1 |
0.4 |
|
75/5 |
1 |
1.5 |
0.4 |
|
80/5 |
1.5 |
2.5 |
0.4 |
|
100/5 |
2.5 |
5 |
0.4 |
|
150/5 |
5-10 |
5-10 |
0.4 |
|
200/5 |
5-10 |
5-10 |
0.4 |
|
250/5 |
5-10 |
5-10 |
0.4 |
|
300/5 |
5-10 |
5-10 |
0.4 | |
|
| WINDOWS TYPE |
Bar: 40×10mm.
conductor: φ30mm. |
|
Type |
Rated
current
(A) |
Rated power (VA) |
Weight
(kg) |
|
Class:0.5 |
Class:1 |
|
MSQ-40 |
100/5 |
2.5 |
2.5 |
0.38 |
|
150/5 |
3 |
5 |
0.38 |
|
200/5 |
5 |
5-10 |
0.38 |
|
250/5 |
5-10 |
5-10 |
0.38 |
|
300/5 |
5-10 |
5-10 |
0.38 |
|
400/5 |
5-10 |
5-10 |
0.38 |
|
500/5 |
5-10 |
5-10 |
0.38 | |
|
| WINDOWS TYPE |
Bar: 60×20mm.
conductor: φ40mm. |
|
Type |
Rated
current
(A) |
Rated power (VA) |
Weight
(kg) |
|
Class:0.5 |
Class:1 |
|
MSQ-60 |
250/5 |
5 |
5 |
0.60 |
|
300/5 |
5 |
5 |
0.60 |
|
400/5 |
5-10 |
5-10 |
0.60 |
|
500/5 |
5-10 |
5-15 |
0.60 |
|
600/5 |
10-15 |
10-15 |
0.60 |
|
750/5 |
10-15 |
10-15 |
0.60 |
|
800/5 |
10-15 |
10-15 |
0.60 |
|
1000/5 |
15 |
15 |
0.60 | |
|
| WINDOWS TYPE |
Bar: 80×30mm.or 100×10mm.
conductor:φ60mm. |
|
Type |
Rated
current
(A) |
Rated power (VA) |
Weight
(kg) |
|
Class:0.5 |
Class:1 |
|
MSQ-60 |
1500/5 |
15 |
15 |
0.80 |
|
1600/5 |
15 |
15 |
0.80 |
|
2000/5 |
15 |
15 |
0.94 |
|
2250/5 |
15 |
15 |
0.98 |
|
2500/5 |
15 |
15 |
1.10 |
|
3000/5 |
15 |
15 |
1.16 | |
