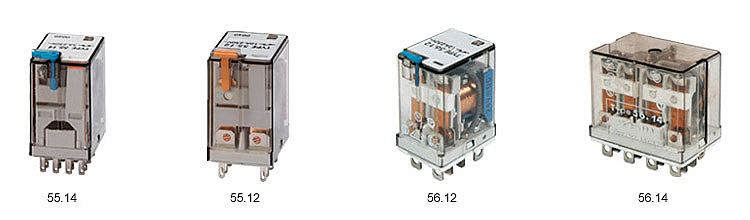

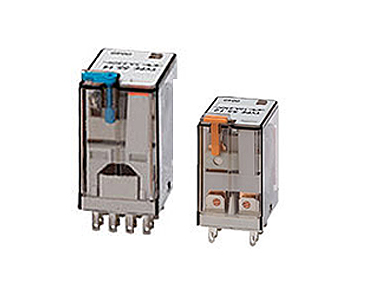

CONTACTOR
General-purpose Relays
Print this page
Bookmark this page
PDF View
Tell a friend
Live Messenger
Skype Me
E-mail Us
Consulting Product Information
Share |

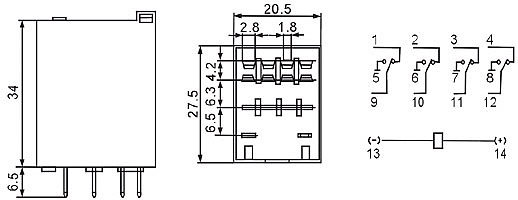

55.14
Size(mm):20.5×27.5×34
Terminal layout:4Z
Contact capacity:3A 250VAC/
3A 30VDC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC

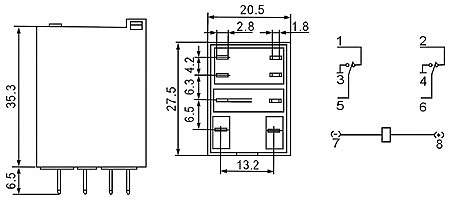

55.12
Size(mm):20.5×27.5×35.3
Terminal layout:2Z
Contact capacity: 5A 250VAC/
5A 30VDC
Contact resistance: ≤50mΩ
Insulation resistance: ≥100MΩ
Dielectric strength: BOC 1000VAC/
BCC 1500VAC

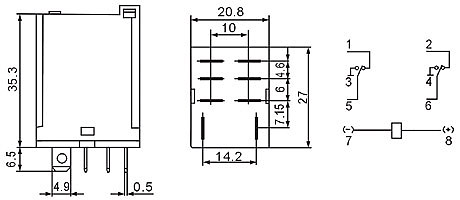

56.12
Size(mm):20.8×27×35.3
Terminal layout:2Z
Contact capacity:10A 250VAC/
10A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC

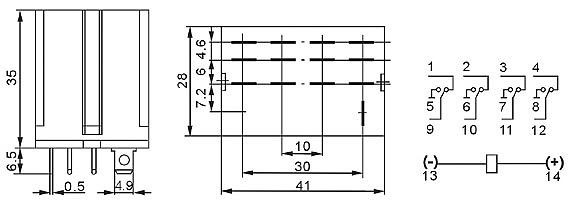

56.14
Size(mm):41×28×35
Terminal layout:4Z
Contact capacity:10A 250VAC/
10A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC
Model Coil nominal voltage Coil nominal power Electrical life Mechanical life Operating temperature Weight Mounting methods
55.14 DC 6V to 110V
AC 6V to 240V 		DC≤0.9W
AC≤0.9VA to 1.2VA 		105OPS 107OPS -40℃~70℃ ≤35g Printed-circuit board,Flange, Outlet
55.12 DC 6V to 110V
AC 6V to 240V 		DC≤0.9W
AC≤0.9VA to 1.2V 		105OPS 107OPS -40℃~60℃ ≤35g Printed-circuit board,Flange, Outlet
55.12 DC 6 to 110V
AC 6 to 240V 		DC≤0.9W
AC≤0.9VA to 1.2VA 		105OPS 107OPS -40℃~70℃ ≤35g Printed-circuit board,Flange, Outlet
55.14 DC 6 to 110V
AC 6 to 240V 		DC≤1.5W
AC≤2.5VA 		105OPS 107OPS -40℃~70℃ ≤70g Printed-circuit board,Flange, Outlet
