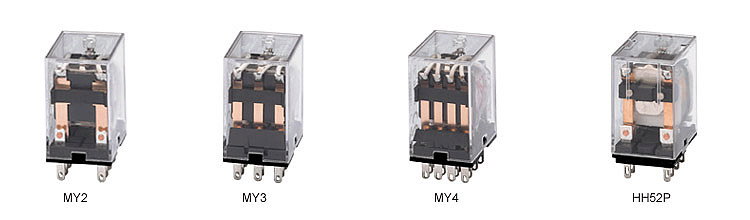

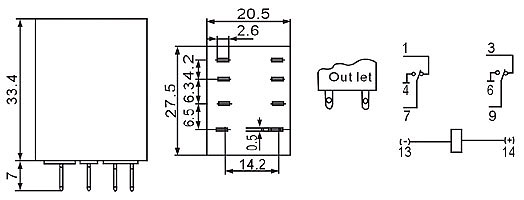

| MY2 |
|
Size(mm):20.5×27×33.4
Terminal layout:2Z
Contact capacity:5A 220VAC/
5A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
| |
|

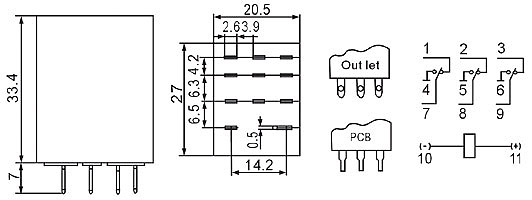

| MY3 |
|
Size(mm):20.5×27×33.4
Terminal layout:3Z
Contact capacity: 5A 220VAC/
5A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
| |
|

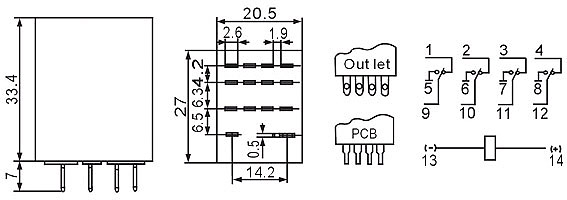

| MY4 |
|
Size(mm):20.5×27×33.4
Terminal layout:4Z
Contact capacity:3A 220VAC/
3A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
| |
|
| HH52P |
|
Size(mm):20.5×27.5×33.5
Terminal layout:2Z
Contact capacity:5A 220VAC/
5A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
| |
|
|
Model |
Coil nominal voltage |
Coil nominal power |
Electrical life |
Mechanical life |
Operating temperature |
Weight |
Mounting methods |
|
MY2 |
DC 6 to 110V
AC 6 to 220V |
DC≤0.9W
AC≤1.2VA |
105OPS |
107OPS |
-40℃~70℃ |
≤32g |
Printed-circuit board,Flange, Outlet |
|
MY3 |
DC 6 to 110V
AC 6 to 220V |
DC≤0.9W
AC≤1.2VA |
105OPS |
107OPS |
-40℃~70℃ |
≤32g |
Printed-circuit board,Flange, Outlet |
|
MY4 |
DC 6 to 110V
AC 6 to 220V |
DC≤0.9W
AC≤1.2VA |
105OPS |
107OPS |
-40℃~70℃ |
≤32g |
Printed-circuit board,Flange, Outlet |
|
HH52P |
DC 6 to 110V
AC 6 to 220V |
DC≤0.9W
AC≤1.2VA |
105OPS |
107OPS |
-40℃~70℃ |
≤32g |
Flange, Outlet | |
