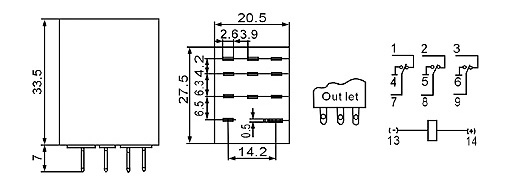

| HH53P |
|
|
Size(mm):20.5×27.5×33.5
Terminal layout:3Z
Contact capacity:3A 5A 220VAC/
3A 5A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
 | |
|

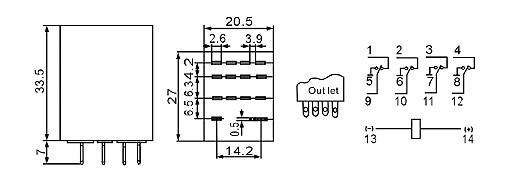

| HH54P |
|
|
Size(mm):20.5×27.5×33.5
Terminal layout:4Z
Contact capacity:3A 220VAC/
3A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
 | |
|

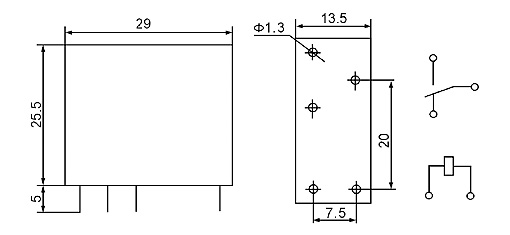

| JQX-14FC-1Z(16A) |
|
|
Size(mm):29×13.5×25.5
Terminal layout:1Z、1H、1D
Contact capacity:16A 220VAC/
16A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥1000MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
 | |
|

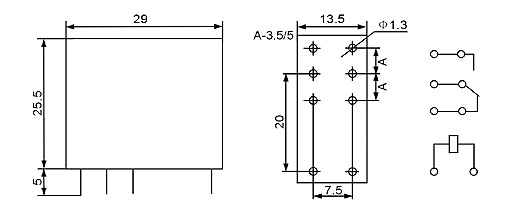

| JQX-14FC-1Z |
|
|
Size(mm):29×13.5×25.5
Terminal layout:1Z、1H、1D
Contact capacity: 10A 220VAC/
10A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥1000MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
 | |
|
| Model |
Coil nominal voltage |
Coil nominal power |
Electrical life |
Mechanical life |
Operating temperature |
Weight |
Mounting methods |
| HH53P |
DC 6 to 110V
AC 6 to 220V |
DC≤0.9W
AC≤1.2VA |
105OPS |
107OPS |
-40℃~70℃ |
≤32g |
Flange, Outlet |
| HH54P |
DC 6 to 110V
AC 6 to 240V |
DC≤0.9W
AC≤0.9 to 1.2VA |
105OPS |
107OPS |
-40℃~70℃ |
≤32g |
Flange, Outlet |
| JQX-14FC-1Z(16A) |
DC 6 to 110V
AC 6 to 220V |
DC≤0.55W
AC≤1.2 to 2.5VA |
105OPS |
107OPS |
-40℃~70℃ |
≤32g |
Printed-circuit board |
| JQX-14FC-1Z |
DC 6 to 110V
AC 6 to 220V |
DC≤0.55W
AC≤1.2VA to 2.5VA |
105OPS |
107OPS |
-40℃~70℃ |
≤32g |
Printed-circuit board | |
