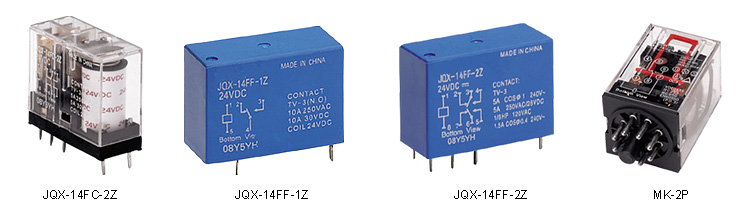

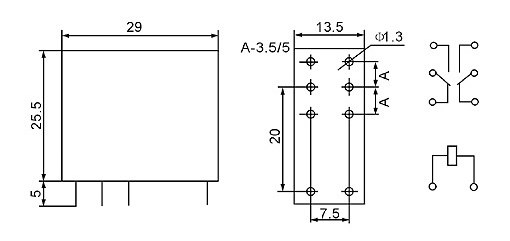

| JQX-14FC-2Z |
|
|
Size(mm):29×13.5×25.5
Terminal layout:2Z、2H、2D
Contact capacity: 5A 250VAC/
5A 30VDC
Contact resistance:≤50mΩ
Insulation resistance:≥1000MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
 | |
|

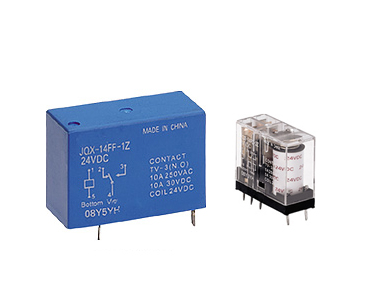

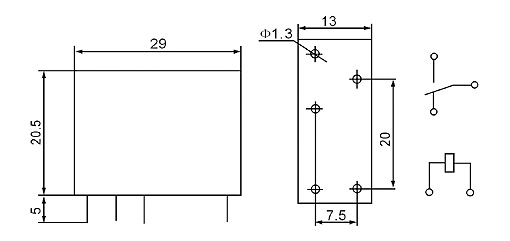

| JQX-14FF-1Z |
|
|
Size(mm):29×13×20.5
Terminal layout:1Z、1H、1D
Contact capacity: 10A 250VAC/
10A 30VDC
Contact resistance:≤50mΩ
Insulation resistance:≥1000MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
 | |
|

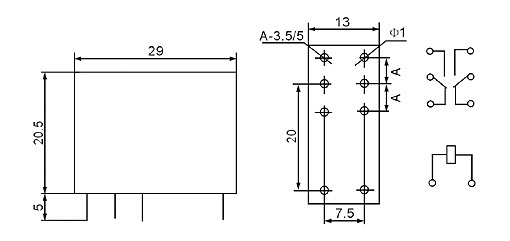

| JQX-14FF-2Z |
|
|
Size(mm):29×13×20.5
Terminal layout:2Z、2H、2D
Contact capacity:5A 250VAC/
5A 30VDC
Contact resistance:≤50mΩ
Insulation resistance:≥1000MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
 | |
|

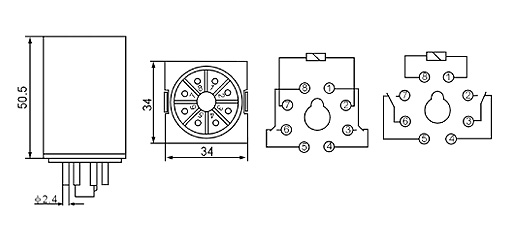

| MK-2P |
|
|
Size(mm):34×34×50.5
Terminal layout:2P
Contact capacity:10A 220VAC/
10A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥500MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
 | |
|
| Model |
Coil nominal voltage |
Coil nominal power |
Electrical life |
Mechanical life |
Operating temperature |
Weight |
Printed-circuit board |
| JQX-14FC-2Z |
DC 3 to 110V
AC 6 to 220V |
DC≤0.55W
AC≤1.2VA to 2.5VA |
105OPS |
107OPS |
-40℃~65℃ |
≤18g |
Printed-circuit board |
| JQX-14FF-1Z |
DC 3 to 110V
AC 6 to 220V |
DC≤0.55W
AC≤1.2VA to 2.5VA |
105OPS |
107OPS |
-40℃~65℃ |
≤13g |
Printed-circuit board |
| JQX-14FF-2Z |
DC 3 to 110V
AC 6 to 220V |
DC≤0.55W
AC≤1.2VA to 2.5VA |
105OPS |
107OPS |
-40℃~65℃ |
≤13g |
Printed-circuit board |
| MK-2P |
DC 6 to 110V
AC 6 to 220V |
DC≤2W
AC≤3.5VA |
105OPS |
107OPS |
-40℃~65℃ |
≤78g |
Outlet | |
|
