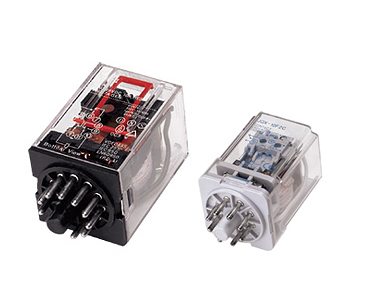

CONTACTOR
General-purpose Relays
Print this page
Bookmark this page
PDF View
Tell a friend
Live Messenger
Skype Me
E-mail Us
Consulting Product Information
Share |

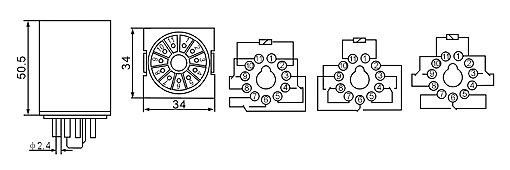

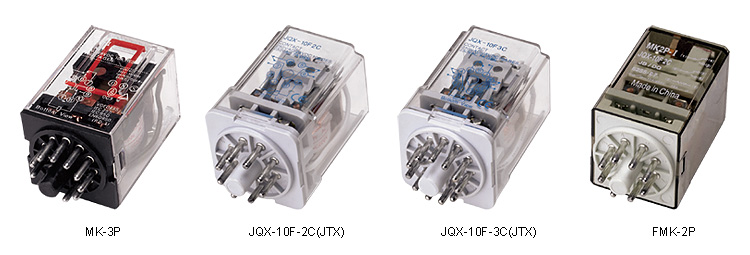

MK-3P
Size(mm):34×34×50.5
Terminal layout:3P
Contact capacity:10A 220VAC/
10A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥500MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC

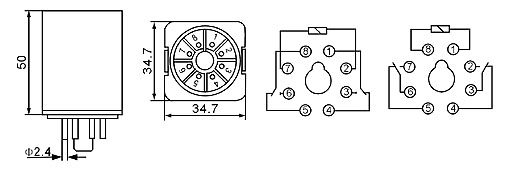

JQX-10F-2C(JTX)
Size(mm):34.7×34.7×50
Terminal layout:2Z/2C
Contact capacity:10A 220VAC/
10A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥500MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC

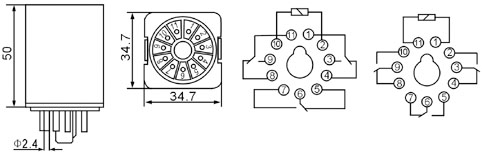

JQX-10F-3C(JTX)
Size(mm):34.7×34.7×50
Terminal layout:3Z/3C
Contact capacity:10A 220VAC/
10A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥500MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC

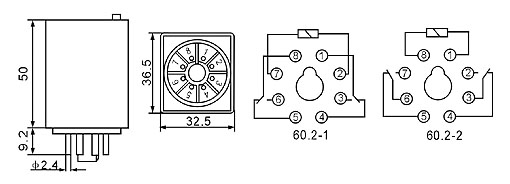

FMK-2P
Size(mm):32.6×36.5×52
Terminal layout:2P
Contact capacity:10A 220VAC/
10A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥500MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC
Model
Coil nominal voltage
Coil nominal power
Electrical life
Mechanical life
Operating temperature
Weight
Mounting methods
MK-3P
DC 3 to 110V
AC 6 to 220V
DC≤2W
AC≤3.5VA
105PS
107OPS
-40℃~55℃
≤78g
Outlet
JQX-10F-2C(JTX)
DC 3 to 110V
AC 6 to 220V
DC≤2W
AC≤3.5VA
105PS
107OPS
-40℃~65℃
≤68g
Outlet
JQX-10F-3C(JTX)
DC 6 to 110V
AC 6 to 220V
DC≤2W
AC≤3.5VA
105PS
107OPS
-40℃~65℃
≤69g
Outlet
FMK-2P
DC 6 to 110V
AC 6 to 220V
DC≤2.0W
AC≤3.5VA
105PS
107OPS
-40℃~70℃
≤76g
Outlet
