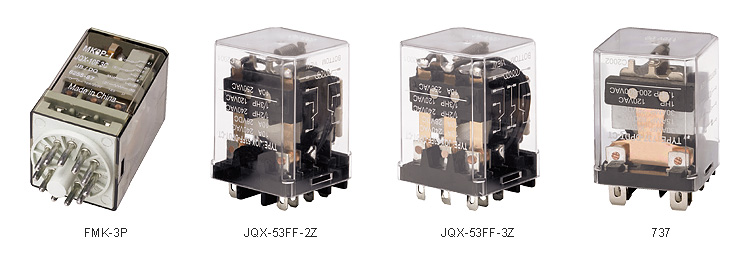

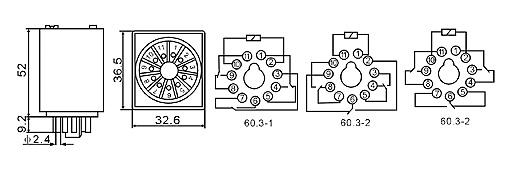

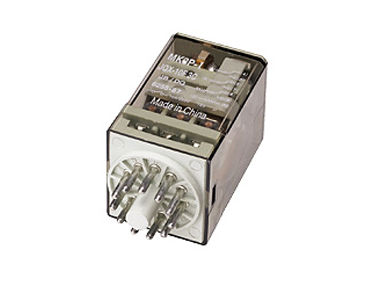

| FMK-3P |
|
Size(mm):34×34×50.5
Terminal layout:3P
Contact capacity:10A 220VAC/
10A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥500MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
 | |
|

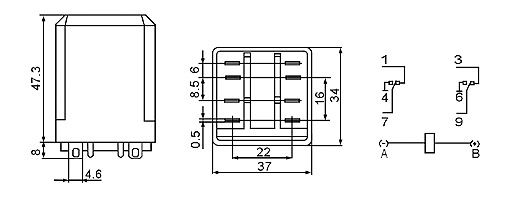

| JQX-53FF-2Z |
|
Size(mm):34.7×34.7×50
Terminal layout:2Z/2C
Contact capacity:10A 220VAC/
10A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥500MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
 | |
|

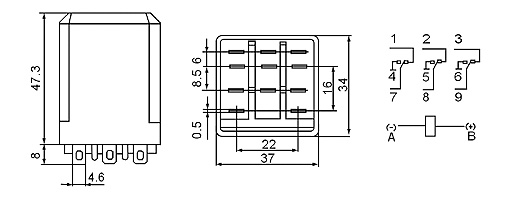

| JQX-53FF-3Z |
|
Size(mm):37×34×47.3
Terminal layout:3Z
Contact capacity:10A 240VAC/
10A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥500MΩ
Dielectric strength:BOC 1500VAC/
BCC 1500VAC |
 | |
|

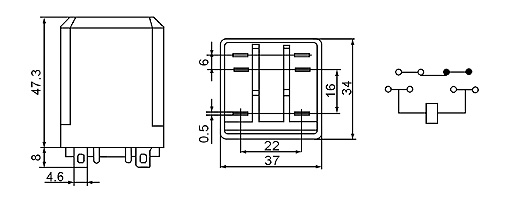

| 737 |
|
Size(mm):37×34×47.3
Terminal layout:1Z
Contact capacity: 30A 300VAC
30A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥500MΩ
Dielectric strength:BOC 1600VAC
BCC 1500VAC |
 | |
|
| Model |
Coil nominal voltage |
Coil nominal power |
Electrical life |
Mechanical life |
Operating temperature |
Weight |
Mounting methods |
| FMK-3P |
DC 6 to 110V
AC 6 to 220V |
DC≤2.0W
AC≤3.5VA |
105OPS |
107OPS |
-40℃~70℃ |
≤80g |
Outlet |
| JQX-53FF-2Z |
DC 6 to 110V
AC 6 to 220V |
DC≤2.0W
AC≤3.5VA |
105OPS |
107OPS |
-40℃~70℃ |
≤72g |
Printed-circuit board,Flange, Outlet |
| JQX-53FF-3Z |
DC 6 to 110V
AC 6 to 220V |
DC≤2.0W
AC≤3.5VA |
105OPS |
107OPS |
-40℃~70℃ |
≤76g |
Printed-circuit board,Flange, Outlet |
| 737 |
DC 6 to 110V
AC 6 to 220V |
DC≤2.0W
AC≤3.5VA |
105OPS |
107OPS |
-40℃~70℃ |
≤75g |
Printed-circuit board,Flange, Outlet | |
|
