MCCB

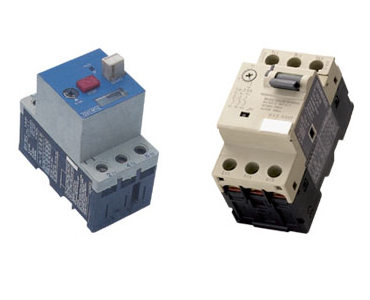

GV Series Motor Protection Circuit Breaker
Print this page
Bookmark this page
PDF View
Tell a friend
Live Messenger
Skype Me
E-mail Us
Consulting Product Information
Share |

Application
GV series motor protection circuit breaker are mainly used for the overload and short circuit protection of the motor in AC 50/60Hz, up to 660V, 0.1-80A power circuit, as a full-voltage starter to start and cut off the motor, under the AC3 load or for the overload and short circuit protection of the circuit and power equipment in the power distribution network.
Specifications:
Type Standard power ratings of 3-phase
motors 50/60Hz in category AC-3		 Setting
220V 380V 415V 440V 500V 660V
KW KW KW KW KW KW
GV1-M01 -- -- -- -- -- -- 0.1-0.16
GV1-M02 -- -- -- -- -- -- 0.16-0.25
GV1-M03 -- -- -- -- -- -- 0.25-0.4
GV1-M04 -- -- -- -- -- 0.37 0.4-0.63
GV1-M05 -- -- -- 0.37 0.37 0.55 0.63-1
GV1-M06 -- 0.37 -- 0.55 0.75 1.1 1-1.6
GV1-M07 0.37 0.75 1.1 1.1 1.1 1.5 1.6-2.5
GV1-M08 0.75 1.5 1.5 1.5 2.2 3 2.5-4
GV1-M10 1.1 2.2 2.2 3 3 4 4-6
GV1-M14 2.2 4 4 4 5.5 7.5 6-10
GV1-M20 4 7.5 7.5 7.5 10 11 10-16
GV1-M21 5.5 10 9 9 11 15 16-20
GV1-M22 5.5 11 11 11 15 18.5 20-25
GV2-M07/RS01 -- -- -- -- -- -- 0.1-0.16
GV2-M07/RS02 -- -- -- -- -- -- 0.16-0.25
GV2-M07/RS03 -- -- -- -- -- -- 0.25-0.4
GV2-M07/RS04 -- -- -- -- -- 0.37 0.4-0.63
GV2-M07/RS05 -- -- -- 0.37 0.37 0.55 0.63-1
GV2-M06/RS06 -- 0.37 -- 0.55 0.75 1.1 1-1.6
GV2-M07/RS07 0.37 0.75 0.75 1.1 1.1 1.5 1.6-2.5
GV2-M08/RS08 0.75 1.5 1.5 1.5 2.2 3 2.5-4
GV2-M10/RS10 1.1 2.2 2.2 3 3.7 4 4-6.3
GV2-M14/RS14 2.2 4 4 4 5.5 7.5 6-10
GV2-M16/RS16 3 5.5 5.5 7.5 7.5 9 9-14
GV2-M20/RS20 4 7.5 9 9 9 11 13-18
GV2-M21/RS21 5.5 11 11 11 11 15 17-23
GV2-M22/RS22 5.5 11 11 11 15 18.5 20-25
GV2-M32/RS3 7.5 15 15 15 18.5 26
GV3-M06 -- 0.37 -- 0.55 0.75 1.1 24-32
GV3-M07 0.37 0.75 1.1 1.1 1.1 1.5 1-1.6
GV3-M08 0.75 1.5 1.5 1.5 2.2 3 1.6-2.5
GV3-M10 1.1 2.2 2.2 3 3.7 4 2.5-4
GV3-M14 2.2 4 4 4 5.5 7.5 4-6
GV3-M20 4 7.5 7.5 7.5 10 11 6-10
GV3-M25 5.5 11 11 11 15 18.5 10-16
GV3-M40 11 18.5 18.5 22 25 33 16-25
GV3-M63 15 30 33 33 40 55 25-40
GV3-M80 22 40 45 45 55 63 56-80
