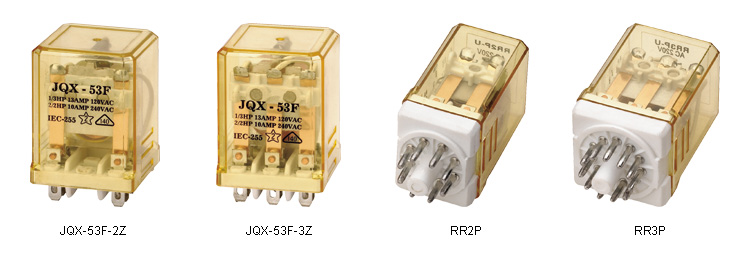

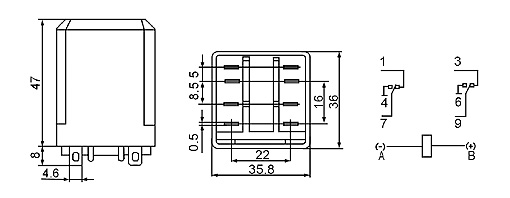

| JQX-53F-2Z |
|
|
Size(mm):35.8×36×47
Terminal layout:2Z
Contact capacity:10A 220VAC/
10A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥500MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
 | |
|

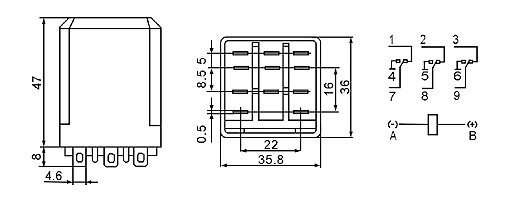

| JQX-53F-3Z |
|
|
Size(mm):35.8×36×47
Terminal layout:3Z
Contact capacity:10A 220VAC/
10A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥500MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
 | |
|

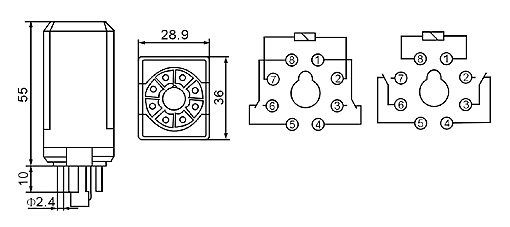

| RR2P |
|
|
Size(mm):28.9×36×55
Terminal layout:2P
Contact capacity:10A 220VAC/
10A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥500MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
 | |
|

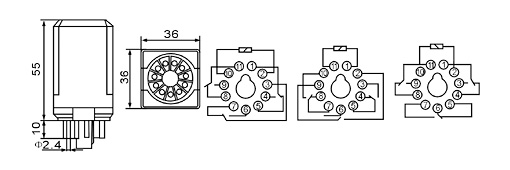

| RR3P |
|
|
Size(mm):36×36×55
Terminal layout:3P
Contact capacity: 10A 220VAC/
10A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥500MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
 | |
|
| Model |
Coil nominal voltage |
Coil nominal power |
Electrical life |
Mechanical life |
Operating temperature |
Weight |
Mounting methods |
| JQX-53F-2Z |
DC 6 to 110V
AC 6 to 220V |
DC≤2W
AC≤3.5VA |
105OPS |
107OPS |
-40℃~55℃ |
≤70g |
Printed-circuit board,Flange, Outlet |
| JQX-53F-3Z |
DC 6 to 110V
AC 6 to 220V |
DC≤2W
AC≤3.5VA |
105OPS |
107OPS |
-40℃~55℃ |
≤72g |
Printed-circuit board,Flange, Outlet |
| RR2P |
DC 6 to 110V
AC 6 to 240V |
DC≤2W
AC≤3.5VA |
105OPS |
107OPS |
-40℃~55℃ |
≤74g |
Outlet |
| RR3P |
DC 6 to 110V
AC 6 to 220V |
DC≤2W
AC≤3.5VA |
105OPS |
107OPS |
-40℃~55℃ |
≤80g |
Outlet | |
