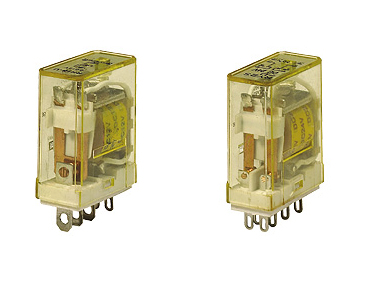

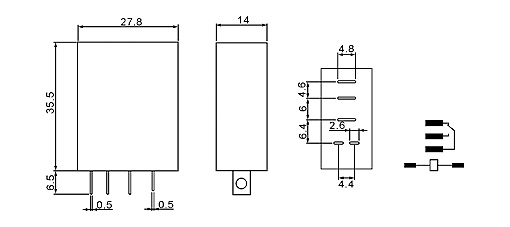

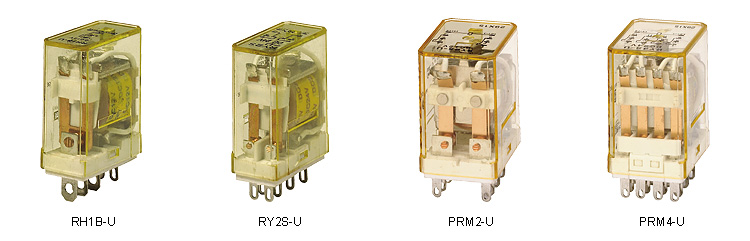

| RH1B-U |
|
|
Size(mm):27.8×14×42
Terminal layout:1Z
Contact capacity:10A 240VAC/
10A 30VDC
Contact resistance:≤50mΩ
Insulation resistance:≥500MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
 | |
|

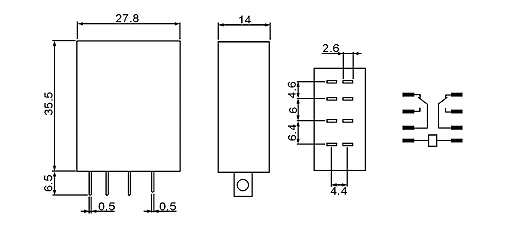

| RY2S-U |
|
|
Size(mm):27.8×14×42
Terminal layout:2Z
Contact capacity:3A 240VAC/
3A 30VDC
Contact resistance:≤50mΩ
Insulation resistance:≥500MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
 | |
|

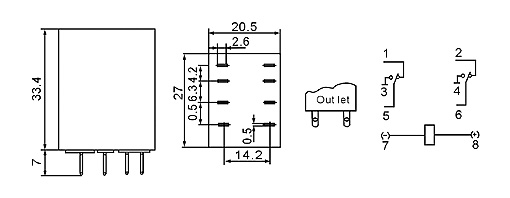

| PRM2-U |
|
|
Size(mm):20.5×27×33.4
Terminal layout:2Z
Contact capacity:5A 220VAC/
5A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥500MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
 | |
|

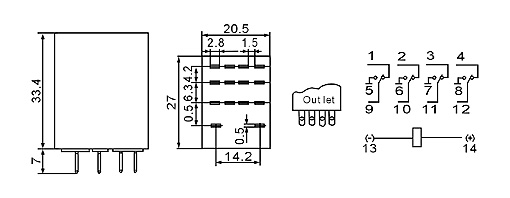

| PRM4-U |
|
|
Size(mm):20.5×27×33.4
Terminal layout:4Z
Contact capacity:3A 220VAC/
3A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥500MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
 | |
|
| Model |
Coil nominal voltage |
Coil nominal power |
Electrical life |
Mechanical life |
Operating temperature |
Weight |
Mounting methods |
| RH1B-U |
DC 6 to 110V
AC 6 to 220V
|
DC≤0.9W
AC≤1.2VA |
105OPS |
107OPS |
-40℃~70℃ |
≤22g |
Outlet |
| RY2S-U |
DC 6 to 110V
AC 6 to 220V
|
DC≤0.9W
AC≤1.2VA |
105OPS |
107OPS |
-40℃~70℃ |
≤22g |
Outlet |
| PRM2-U |
DC 6 to 110V
AC 6 to 220V
|
DC≤0.9W
AC≤1.2VA |
105OPS |
107OPS |
-40℃~70℃ |
≤34g |
Flange, Outlet |
| PRM4-U |
DC 6 to 110V
AC 6 to 220V
|
DC≤0.9W
AC≤1.2VA |
105OPS |
107OPS |
-40℃~70℃ |
≤34g |
Flange, Outlet | |
