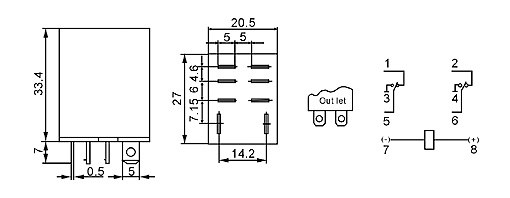

| PRH2B-U |
|
|
Size(mm):20.5×27×33.4
Terminal layout:2Z
Contact capacity:10A 220VAC/
10A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥500MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
 | |
|

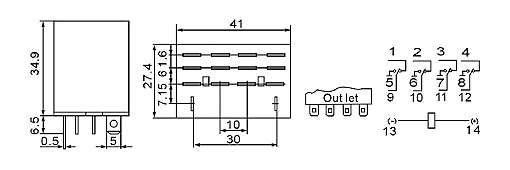

| PRH4B-U |
|
|
Size(mm):41×27.4×34.9
Terminal layout:4Z
Contact capacity:10A 220VAC/
10A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥500MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
 | |
|

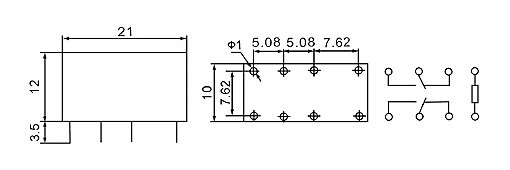

| JRC-19F(4078) |
|
|
Size(mm):21×10×12
Terminal layout:2Z、2H
Contact capacity: 0.5A 120VAC/
1A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC 500VAC/
BCC 1000VAC |
 | |
|

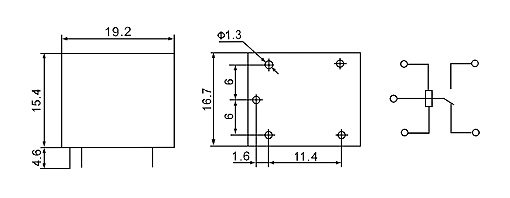

| JQC-3F(T73) |
|
|
Size(mm):19.2×15.5×15.4
Terminal layout:1Z、1H
Contact capacity: 10A 125VAC/
10A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥500MΩ
Dielectric strength:BOC 750VAC/
BCC 1200VAC |
 | |
|
| Model |
Coil nominal voltage |
Coil nominal power |
Electrical life |
Mechanical life |
Operating temperature |
Weight |
Mounting methods |
| PRH2B-U |
DC 6 to 110V
AC 6 to 220V |
DC≤0.9W
AC≤1.2VA |
105OPS |
106OPS |
-40℃~55℃ |
≤34g |
Flange, Outlet |
| PRH4B-U |
DC 6 to 220V
AC 6 to 380V |
DC≤1.5W
AC≤2.5VA |
105OPS |
106OPS |
-40℃~55℃ |
≤69g |
Flange, Outlet |
| JRC-19F(4078) |
DC 3 to 48V |
DC≤0.36W |
105OPS |
106OPS |
-40℃~55℃ |
≤5g |
Printed-circuit board |
| JQC-3F(T73) |
DC 3 to 48V |
DC≤0.36W |
105OPS |
106OPS |
-40℃~55℃ |
≤10g |
Printed-circuit board | |
