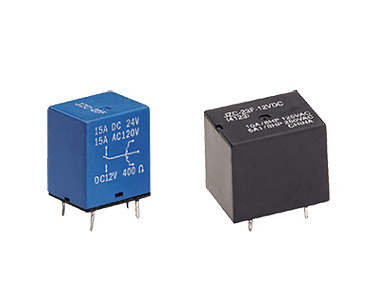

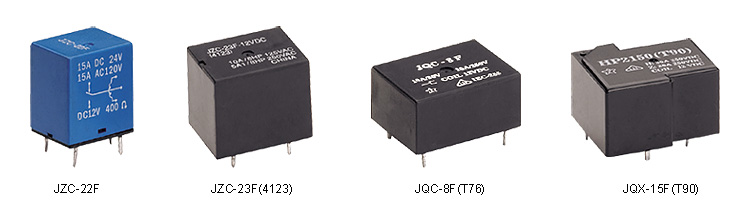

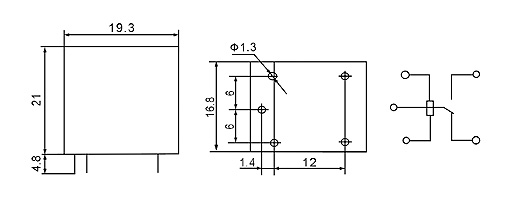

| JZC-22F |
|
|
Size(mm):19.3×16.8×21
Terminal layout:1Z、1H
Contact capacity: 5A 7A 12A 15A/
125VAC/287VDC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC 500VAC/
BCC 1500VAC |
 | |
|

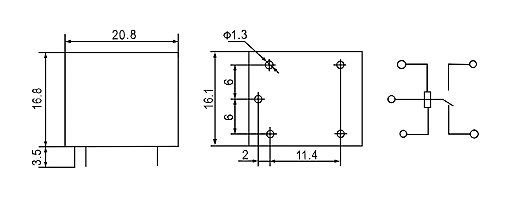

| JZC-23F(4123) |
|
|
Size(mm):20.8×16.1×16.8
Terminal layout:1Z、1H
Contact capacity: 10A 125VAC/
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC 500VAC/
BCC 1500VAC |
 | |
|

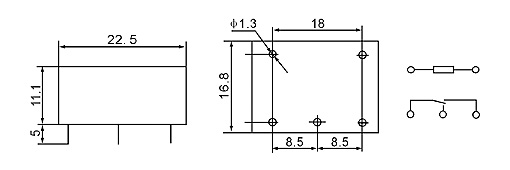

| JQC-8F(T76) |
|
|
Size(mm):22.5×16.8×11.1
Terminal layout:1Z、1H
Contact capacity: 20A 125VAC/
10A 220VDC
Contact resistance:≤50mΩ
Insulation resistance:≥500MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
 | |
|

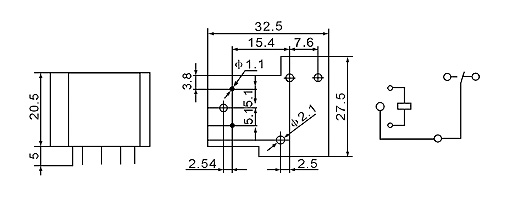

| JQX-15F(T90) |
|
|
Size(mm):32.5×27.5×20.5
Terminal layout:1Z、1H
Contact capacity:30A 28VDC/
30A 125VAC/
20A 220VAC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
 | |
|
| Model |
Coil nominal voltage |
Coil nominal power |
Electrical life |
Mechanical life |
Operating temperature |
Weight |
Mounting methods |
| JZC-22F |
DC 3 to 48V |
DC≤0.45W |
105OPS |
106PS |
-25℃~40℃ |
≤13g |
Printed-circuit board |
| JZC-23F(4123) |
DC 3 to 48V |
DC≤0.36W |
105OPS |
106PS |
-40℃~55℃ |
≤10g |
Printed-circuit board |
| JQC-8F(T76) |
DC 3 to 48V |
DC≤0.2W |
105OPS |
106PS |
-40℃~55℃ |
≤11g |
Printed-circuit board |
| JQX-15F(T90) |
DC 3 to 110V |
DC≤0.93W |
105OPS |
106PS |
-40℃~55℃ |
≤24g |
Printed-circuit board | |
