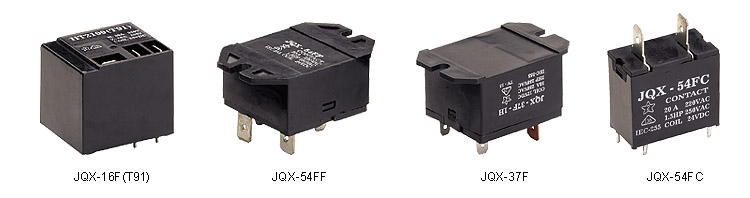

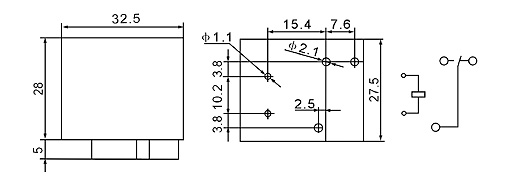

| JQX-16F(T91) |
|
|
Size(mm):32.5×27.5×28
Terminal layout:1Z、1H、1D
Contact capacity: 20A 30A 28VDC/
30A 20A 220VAC
Contact resistance:≤50mΩ
Insulation resistance:≥500MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
| |
|

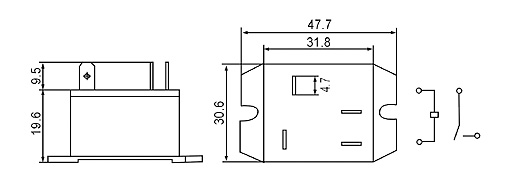

| JQX-54FF |
|
|
Size(mm):47.7×30.8×19.6
Terminal layout:1Z、1H
Contact capacity: 30A 28VDC/
30A 250VAC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
| |
|

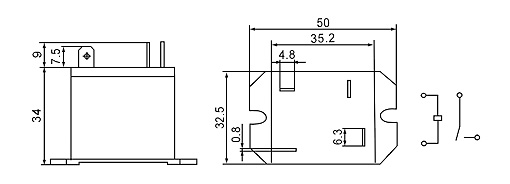

| JQX-37F |
|
|
Size(mm):50×32.5×34
Terminal layout:1H
Contact capacity: 40A 240VAC/
80A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
| |
|

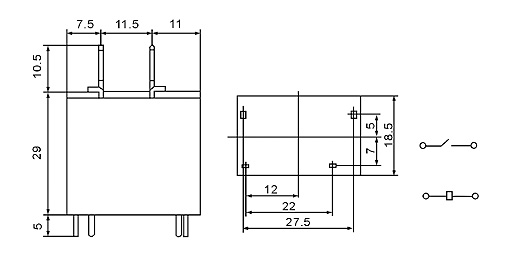

| JQX-54FC |
|
|
Size(mm):30×18.5×29
Terminal layout:1Z、1H
Contact capacity: 10A 125VAC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
| |
|
|
|
|
|
|
|
Operating temperature |
Weight |
|
|
|
|
|
|
|
-40℃~85℃ |
≤31g |
|
|
|
|
|
|
|
-40℃~55℃ |
≤37g |
|
|
|
|
|
|
|
-40℃~55℃ |
≤50g |
|
|
|
|
|
|
|
-40℃~50℃ |
≤27g |
| |
