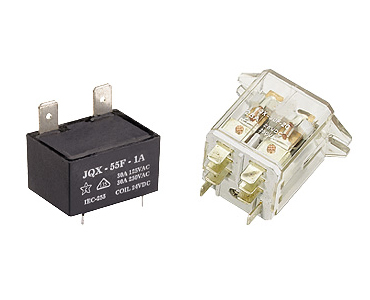

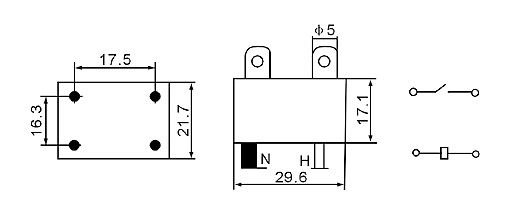

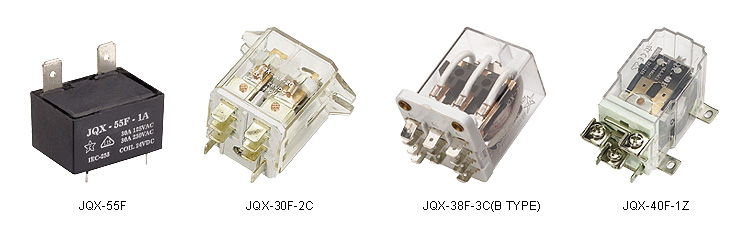

| JQX-55F |
|
|
Size(mm):29.6×21.7×17.1
Terminal layout:1Z、1H
Contact capacity: 30A 125VAC/
30A 250VAC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
 | |
|

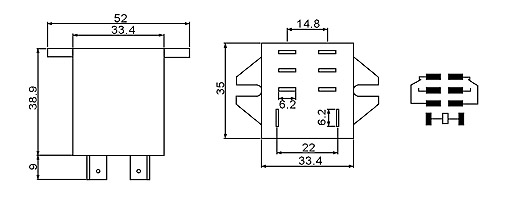

| JQX-30F-2C |
|
|
Size(mm):52×35×47.9
Terminal layout:1C、2C
Contact capacity: 30A 250VAC/
30A 28VAC
Contact resistance:≤50mΩ
Insulation resistance:≥500MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
 | |
|

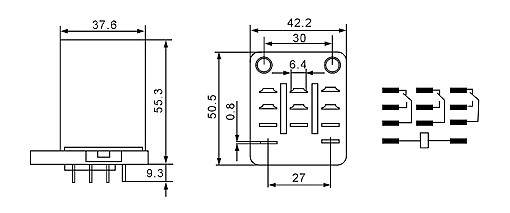

| JQX-38F-3C(B TYPE) |
|
|
Size(mm):42.2×37.6×55.3
Terminal layout:2C、2H、3C、3H
Contact capacity: 30A 28VDC/
30A 250VDC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC |
 | |
|

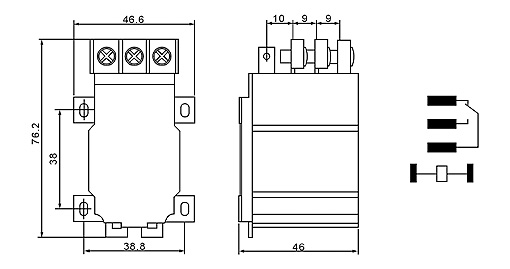

| JQX-40F-1Z |
|
|
Size(mm):59×34.6×46
Terminal layout:1Z、1H、1D
Contact capacity: 40A 250VAC/
Contact resistance:≤50mΩ
Insulation resistance:≥1000MΩ
Dielectric strength:BOC 1500VAC/
BCC 2500VAC |
 | |
|
| Model |
Coil nominal voltage |
Coil nominal power |
Electrical life |
Mechanical life |
Operating temperature |
Weight |
Mounting methods |
| JQX-55F |
DC 6 to 48V |
DC≤0.9W |
105OPS |
106OPS |
-40℃~55℃ |
≤22g |
Printed-Circuit board |
| JQX-30F-1C |
DC 6 to 110V
AC 6 to 220V |
DC≤0.9W
AC≤1.2VA |
105OPS |
106OPS |
-40℃~55℃ |
≤71g |
Flange,Outlet |
| JQX-38F-3C(B TYPE) |
DC 6 to 220V
AC 6 to 380V |
DC≤2.5W
AC≤4.5VA |
105OPS |
106OPS |
-40℃~70℃ |
≤115g |
Outlet |
| JQX-40F-1Z |
DC 6 to 220V
AC 6 to 380V |
DC≤2.8W
AC≤4.2VA |
105OPS |
106OPS |
-40℃~55℃ |
≤150g |
Screw Mounting | |
