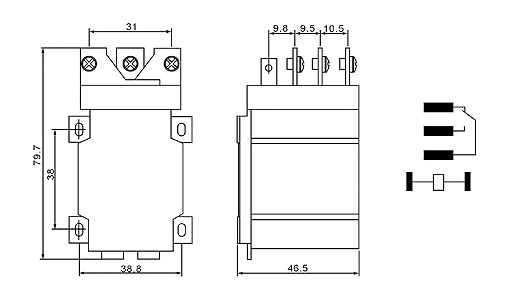

| JQX-60F-1Z |
|
|
Size(mm):65×38.5×46
Terminal layout:1Z、1H、1D
Contact capacity:60A 250VAC
Contact resistance:≤50mΩ
Insulation resistance:≥1000MΩ
Dielectric strength:BOC 1500VAC/
BCC 2500VAC |
 | |
|

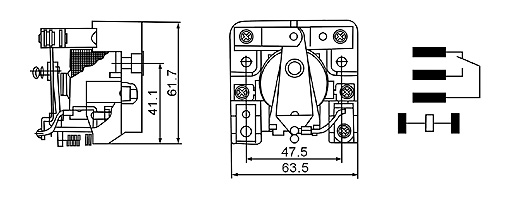

| JQX-62F-1Z |
|
|
Size(mm):61.7×63.5×56.5
Terminal layout:1Z
Contact capacity:80A 250VAC/
80A 30VDC
Contact resistance:≤50mΩ
Insulation resistance:≥1000MΩ
Dielectric strength:BOC 1500VAC/
BCC 2500VAC |
 | |
|

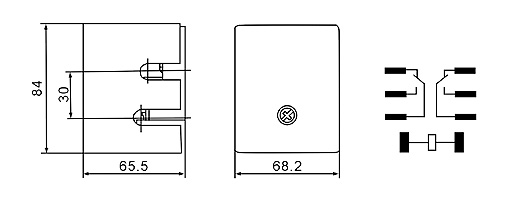

| JQX-62F-2Z |
|
|
Size(mm):84×68.2×65.5
Terminal layout:2Z
Contact capacity:60A 250VAC/
60A 30VDC
Contact resistance:≤50mΩ
Insulation resistance:≥1000MΩ
Dielectric strength:BOC 2200VAC/
BCC 2200VAC |
 | |
|

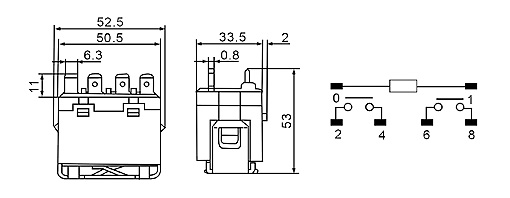

| G7L-2P-TUBJ |
|
|
Size(mm):68.5×33.5×47
Terminal layout:1H、2H
Contact capacity:20A 220VAC/
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC 1500VAC/
BCC 2500VAC |
 | |
|
| Model |
Coil nominal voltage |
Coil nominal power |
Electrical life |
Mechanical life |
Operating temperature |
Weight |
Mounting methods |
| JQX-60F-1Z |
DC 6 to 220 V
AC 6 to 380V |
DC≤3W
AC≤4.5VA |
105OPS |
106OPS |
-40℃~55℃ |
≤187g |
Screw Mounting |
| JQX-62F-1Z |
DC 6 to 220 V
AC 6 to 380V |
DC≤3.3W
AC≤5VA |
105OPS |
106OPS |
-40℃~40℃ |
≤210g |
Screw Mounting |
| JQX-62F-2Z |
DC 6 to 220 V
AC 6 to 380V |
DC≤4W
AC≤6VA |
105OPS |
106OPS |
-40℃~40℃ |
≤340g |
Screw Mounting |
| G7L-2P-TUBJ |
DC 6 to 24 V
AC 6 to 220V |
DC≤2W |
105OPS |
106OPS |
-40℃~70℃ |
≤100g |
Outlet | |
