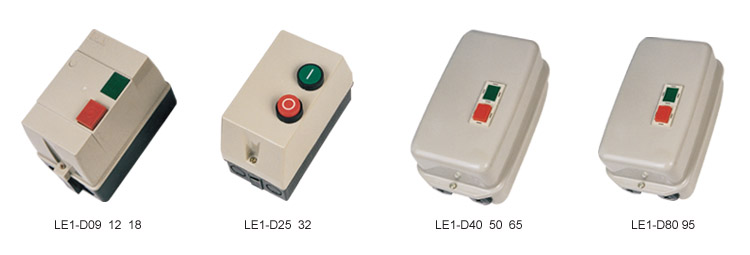

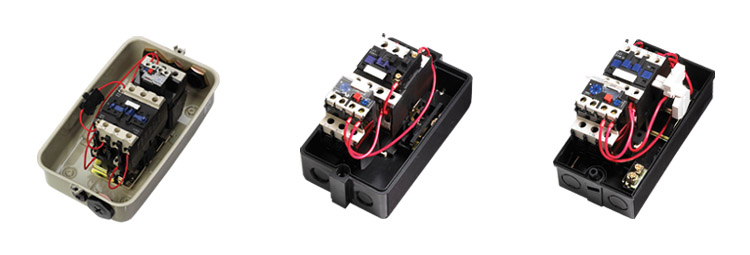

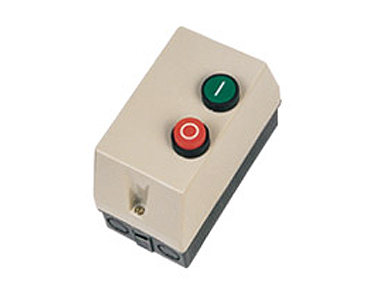

LE1-D magnetic starter

Consulting Product Information

Share |

Applications

LE1-D magnetic starter is mainly applied to circuit of AC 50 or 60Hz, voltage up to 550V for far distance making and breaking circuit and frequently starting and controlling motor. It has the features of small volume, light weight, low power consumption, high efficiency, safe and reliable performance etc.

Specification

Maximum power Ac3 duty(KW)			Max operational current(A)	Code Number		Suitable Thermal Relay(A)
220V 230V	380V 400V	415V/440V	Max operational current(A)	LL (long life)	NL(3) (normal life)	Suitable Thermal Relay(A)
1.1	2.2	2.2	6	-	LE1-EC135...	LR3 E010
2.2	4	4	9	LE1-D094... LE1-D093...	- -	LR2-D1312 LR2-D1314
3	5.5	5.5	12	LE1-D124... LE1-D123...	LE1-D094... LE1-5093...	LR2-D1316
4	7.5	9	18	LE1-D188... LE1-D185...	LE1-D124... LE1-D123...	LR2-D1321
5.5	11	11	25	LE1-D258... LE1-D255...	LE1-D188... LE1-D185...	LR2-D1322 LR2-D2353
7.5	15	15	32	LE1-D325...	LE1-D255...	LR2-D2355
11	18.5	22	40	LE1-D405...	LE1-D325...	LR2-D3353 LR2-D3355
15	22	25	50	LE1-D505...	LE1-D405...	LR2-D3357 LR2-D3359
18.5	30	37	65	LE1-D655...	LE1-D505...	LR2-D3361
22	37	45	80	LE1-D805...	LE1-D655...	LR2-D3363 LR2-D3365
25	45	45	95	LE1-D955...	LE1-D805...	LR2-D3365
