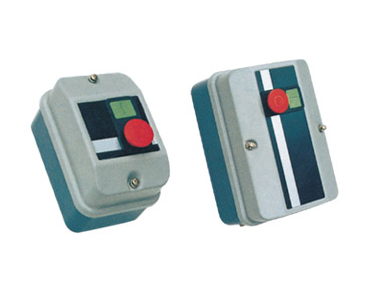

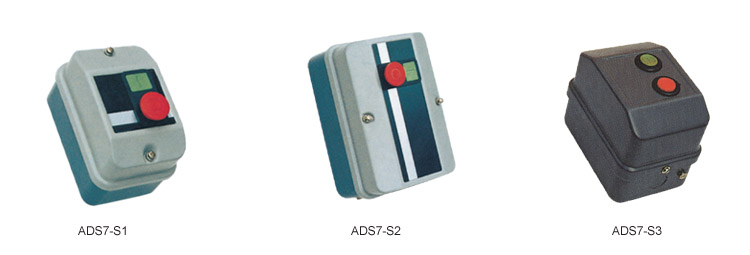

| ADS7 contactor starters, Star-delta starters |
|
| Specification |
|
| Type |
Rated current AC3
415V(A) |
3phase motor capaccity AC3 load 415V |
Direct-on-line,surface mounting
Direct-on-line,flush mounting
Direct-on-line,surface mounting,reversing
Direct-on-line,surface mounting,with isolator |
0.74-1.11A |
0.37KW |
0.50HP |
|
1.11-1.66A |
0.55KW |
0.75HP |
|
1.66-2.50A |
1.10KW |
1.50HP |
|
2.50-3.70A |
1.50KW |
2.00HP |
|
3.70-5.60A |
2.50KW |
3.40HP |
|
5.60-8.40A |
4.00KW |
5.50HP |
|
8.40-11.9A |
5.50KW |
7.50HP |
|
11.4-16.0A |
7.50KW |
10.0HP |
|
16.0-23.0A |
11.0KW |
15.0HP |
|
22.0-33.0A |
15.0KW |
20.0HP | |
|
| Type |
Rated current AC3
415V(A) |
3phase motor capaccity AC3 load 415V |
| Star-dalta,suface mounting |
4.30-6.40A |
3.00KW |
4.00HP |
|
6.40-9.70A |
5.00KW |
6.80HP |
|
9.70-14.5A |
7.50KW |
10.0HP |
|
14.5-20.6A |
10.0KW |
13.5HP |
|
19.7-27.7A |
15.5KW |
20.0HP |
|
26.0-38.0A |
22.0KW |
30.0HP |
|
38.0-57.0A |
30.0KW |
40.0HP | | |
|
