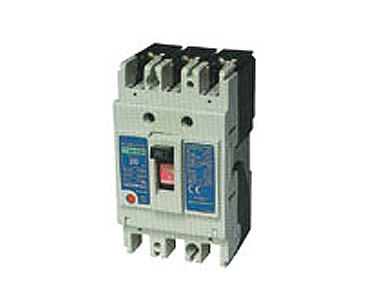

| NF Moulded Case Circuit Breaker |
|
| Frame rated current Inm(A) |
30 |
50 |
125 |
| Type |
NF30-SW |
NF63-SW |
NF125-SW |
| Photo |
 |
 |
Rated current In (A) 40℃
reference ambient temperature |
16,10,16,
20,25,32 |
6,10,16,
20,25,30,
40,50,63 |
60,75,100,
125 |
| Number of poles |
3 |
3 |
3 |
| Max rated service voltage Ui(V) |
AC |
690 |
690 |
690 |
| DC |
250 |
250 |
250 |
| Dimensions and mounting details |
 |
a |
75 |
75 |
90 |
| b |
130 |
130 |
130 |
| c |
68 |
68 |
61 |
| ca |
90 |
90 |
88 |
| bb |
110 |
110 |
110 |
| aa |
25 |
25 |
30 |
| Dimensions and mounting details |
GB14048-2 AC
(No symmetry value/symmetry value) |
550V 600V |
7.5/4 |
5 |
5/3 |
| 440V 480V |
10/5 |
7.5/4 |
30/15 |
| 380V |
10/5 |
10/5 |
50/25 |
| 220V 240V |
25/13 |
10/5 |
50/25 |
IEC60/947-2
Icu
AC |
500V |
7.5/4 |
25/13 |
100/50 |
| 440V |
10/5 |
7.5/4 |
30/15 |
| 415V |
10/5 |
10/5 |
50/25 |
| 380V |
10/5 |
10/5 |
50/25 |
| 240V |
25/13 |
25/13 |
100/50 |
| DC |
250V |
7.5/4 |
7.5/4 |
40/20 |
| 125V |
- |
- |
- |
| Connection way |
Press terminal |
| Shopping fitting |
Alarming switch (AL) |
- |
○ |
○ |
| Auxiliary switch (AUX) |
- |
○ |
○ |
| Voltage release mounting (SHT) |
- |
○ |
○ |
| Low Voltage release mounting (UVT) |
- |
○ |
○ |
| Accessory lead wire terminal platform (LT) |
- |
○ |
○ |
| Outer operate handle |
- |
○ |
○ |
| Terminal isolation cover |
○ |
- |
○ |
- |
○ |
| Automatic tripping device |
Complete electromagnetism type |
