| Application |
|
It is suitable in ship or land,AC 50Hz or 60Hz rated insulative voltage 660V or DC up to 250V circuit for unfrequent on-and-off switchings. The circuit breaker has overload and short-circuit protecting devices, can protect cable and circuit from damage as a result of overheat. To is standard type, TG is high breaking capacity type. |
|
| Specifictions |
|
| Type |
Rated
current
(A) |
Rated current of circuit
Breaker(A) |
Short circuit breaking capacity |
Life(Times) |
Connection
method |
| 380V |
440V |

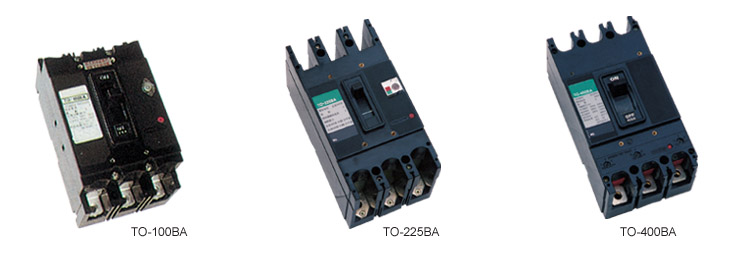

| TO |
100 |
15,20,30,40,50,60,
75,100 |
22 |
18 |
1000 |
Front
Behind
insert |
| 225 |
125,150,175,200,225 |
25 |
20 |
8000 |
| 400 |
250,300,350,400 |
35 |
30 |
5000 |
| 600 |
450,500,600 |
40 |
30 |
5000 |

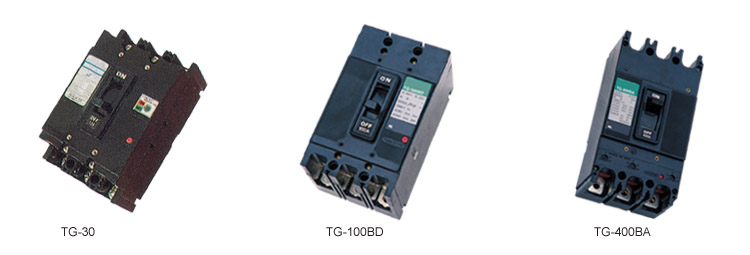

| TG |
30 |
15,20,30 |
35 |
30 |
10000 |
|
| 100 |
15,20,30,40,50,60,
70,100 |
40 |
35 |
5000 |
Front
Behind
insert |
| 225 |
125,150,175,200,225 |
42 |
35 |
5000 |
| 400 |
250,300,350,400 |
42 |
35 |
5000 |
| 600 |
450,500,600 |
50 |
42 |
5000 | | |
