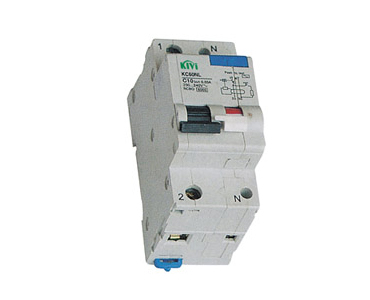

DZ60L RCBO is used for the protection against earth leakage in circuit of 50/60Hz, rated voltage 400V and rated current up to 40A. When somebody gets an electric shock or residual current of the circuit exceeds fixed value,the DZ60L can cut off the power within conventional time automatically and thus ensures personal safety and prevents equipment form damage resulted from residual current. With this function, the DZ60L can be used for the infrequent switch over of the circuit under normal condition.
This item can be used to protect household and similar installation.
The product conforms to IEC1009-1 and GB6829-95 standards.

Rated current: 1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A,50A,63A
Rated residual operating current: 30mA, 100mA, 300mA
Pole /wire number:
a. 1 pole/2 wire
b. 2 pole
c. 3 pole
d. 3 pole/4 wire
e. 4 pole
Instantaneous trip
B type(3~ 5In), Ctype(5~10In), D type(10~14In)
Technical Data
Rated short circuit capacity Im:6000A
Rated residual operating current and breaking capacity I△m: 500A
Rated non-tripping residual current I△no: 0.51I△n

I△n
(A)

I△n
(mA)

Maximum operating time(S)

I△n

2I△n

5I△n

250

1~40

30

0.1

-

-

0.04

>30

0.2

0.1

0.04

-

Rated tripping current

Initial status

Testing current

Specified time

Expected results

Remarks

1~40

cold

1.13In

T≥1h

Non-tripping

1~40

After the previous test

1.45In

Tripping

Increase to fixed value within 5 second

In> 32

cold

2.55In

1S <t<60S

Tripping

In> 32

1S<t<120S

1~40

cold

3In

T≥0.1S

Non-tripping

B type

5In

T<0.1S

Tripping

0.15In

T≥0.1S

Non-tripping

C type

10In

T<0.1S

Tripping

10In

T≥0.1S

Non-tripping

D type

14In

T<0.1S

Tripping
