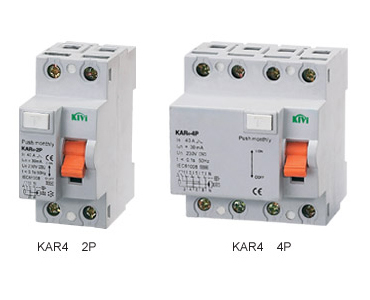

KAR4 Earth Leakage Circuit Breaker
Print this page
Bookmark this page
PDF View
Tell a friend
Live Messenger
Skype Me
E-mail Us
Consulting Product Information
Share |
Application:
The item is in accordance with standards of VDE 0664, CEE27 and BS4293 etc., applying to the circuit of AC 50/60Hz, 240V single phase, 415V three phases and below it for industrial and mining enterprise, building trade, commerce and family. To mainly prevent electric fire and personal casuatly accident caused by personal electric shock or leakage of electrified wire netting, this ELCB is a current-operated, fast leakage protector of pure electromagnetic type, which can break off fault circuit rapidly in order to avoid occurrence of accident. The item is precise in structure, less elements, without auxiliary power and high working reliability. The function of the switch won抰 be influenced by ambient temperature and lighting.The mutual inductor of the item is used to test vector differential value of passing current, and produces are levant output power and add it differential value of protected circuit of personal electric shock is up to or over leakage operating current, the tripper will act and cut off so that the item will take effect of protection.
TECHNICAL DATA:
Tripping time:100ms(depending on specifications 5XI△N400ms)
Ambient temperature: -5℃~+55℃
Climatic resistance: 55℃/28 cycles
Vibration resistance: Minimun 5g 30min, 0~8Hz
Life expectance:At least 10,000 operations
Technical Specification:
Type
Rated current
Leakage
acting current
Range of break-off
Rated voltage
GAR4 2P
16A 25A 32A
40A 63A
10mA 30mA 100mA 300mA
0.5~1.0XI△N
240V(220V)
GAR4 4P
25A 32A 40A 63A
30mA 100mA 300mA
0.5~1.0XI△N
240V/415V
(220V/380V)
